1 Year Food Packaging Machines Corrugated Making Corrugation Unwinder Paper Machine Manufacture

Product Description

150t/D Occ Waste Carton Recycling Fluting Corrugated Testliner Kraft Paper Production Line Making Machine
1.Products Description

1. Raw Material:	Waste Paper, Wood Pulp, Carton Paper
2. Product Variety:	Kraft paper
3. Paper Width:	3800mm
4. Quantitative:	80-220g / m2
5. Production Capacity:	150T/D(24hours)
6. Design Speed:	300m/ min
7. Working Speed:	250-300m / min
8. Rail Gauge:	4600mm
9. Transmission way:	AC variable frequency, section drive

Main Equipments
1.Brief introduction:
Net paper width is 4800mm, is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.
2.Headbox:
Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.
3. Wire Section:
Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll,wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.
4. Press Section:
It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller,equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.
5. Front Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.
6. Beveled Surface Sizing Machine:
Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.
7. Back Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.

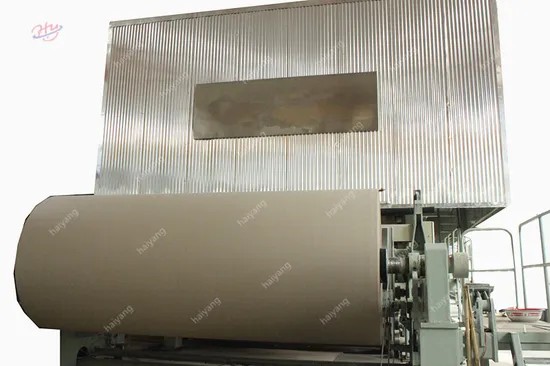

8. Reeling Section: Pneumatic horizontal reeling machine.
Flow chart
Raw material Use Wheat Straw pulp, Rice Straw, Waste Books Paper, Wood Chips, Waste Paper, Bagasse, Wood pulp board, waste paper to produce Kraft paper, test liner paper, corrugated paper, fluting paper, cardboard paper.
Main Equipment Pulp Making Equipments
High contentration hydrapulper, Vibrating screen, Pressure Screen,Double disc pulp refiner, Pulp pump, Low concertration cleaner,Impeller, High concentration cleaner, High speed washer, Decker thickener, Fiber separator, Rejector separator
Company Profile
Since 1989 Qinyang City Haiyang Papermaking Machinery Co., Ltd has been established who is specialist in manufacturing a wide range of Paper Machines for Kraft, Test liner, Fluting paper, Corrugate, Writing & Printing, Newspaper, Duplex Board. We have more than 30 years expertise lies in applying state of the art technology to provide cost effective custom designed solutions to suit their varied requirements.
This company has processing and testing equipment like Longmen CNC machine, planer milling machine, vertical boring machine, automatic continuous welding machine, high speed dynamic balance correction machine, assembly test table etc. With sophisticated processing machinery and professional technical personnel, this company can produce super paper machine equipment.
The main series of the products are tissue paper machine;kraft paper/testliner /fluting paper machine;writing paper machine and special paper machine,etc. This company provides customers high efficiency and practical paper making production line with low carbon environmental protection thought. At present, our products have been sold to more than twenty provinces, cities and autonomous regions in domestic region and exported to Vietnam,Egypt, Bangladesh,Malaysia,Pakistan,Iran and other countries.
Packing&Delivery:
Different parts packed by different materials:
--paper machine frame will be packed by plastic foam. --paper machine accessories parts will be packed in wooden cases.very small parts packed by carton. --paper pulping machine packed by water-proof PVC film,and outside packed by wood cases. Tighten Packaging, Detailed Checking: 1. Fixed all the movable parts with plastic films. 2. Polystyrene foam plate wrapped around. 3. Wrapped with tighted plastic films several circles. 4. Fixed machine on the fumigated plywood pallet with iron wire. 5. Wrapped with wooden board around and nailed on.
Our Services & Strength (1) professional engineer team with 30 years experience;
(2) we can supply turn-key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualified product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: if any problem of machine, we will recall it and change a new one for free;
FAQ 1. What kind of paper machine your factory produce?
Our factory mainly produce flowing machine:
A. Kraft paper machine which can produce carton box paper, corrugated paper, craft paper, testliner paper, carton board paper etc.
B. Culture paper machine which can produce white paper jumbo roll, include A4, A3 paper, copy paper, printing paper, newspaper, offset paper etc.
C. Toilet Paper Machine which can produce toilet paper, tissue paper jumbo roll
D. Paper processing machine. the jumbo roll paper can be processed all kinds of paper, such as , A4, A3paper, handkerchief paper, towel paper and kitchen using paper
2. Can you make paper mill design for us?
Yes, we have a technician team of 116 engineers and 12 experts with more than 20years experience.
3. How about your machine quality, we are worry about the quality?
FRD is a mature brand in china, more than 30 years manufacuturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System, and can match all the CE standard or more strict standard. our paper machine is running well in more than 20 countries. we are gold supplier on ****** already 5 years.
4. What should I have to know if I want to get the quotation?
a. What kind of raw material you will use(main important)
b. The capacity you want produce per day(main important)
c. The paper weight you require.
d. The paper width you require.
5. Your machine price is high, is there any discount?
We always provide high quality paper machines, we are paying more attention on oversea market, because of communication time after sales, and also it need very long time to send new parts. our paper machines have enough quality standard to make sure the machine can work more than the real warranty period. our marketing style is quality=price and price=quality, the price will be acceptable for our clients and durable for our machines. anyhow, when we will negotiate the price with each other during our meeting in factory, and get a good satisfaction.
6. Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have 116 technical installation engineer team, they can train and teach your worker to operate paper machine, but you should pay them salary.
