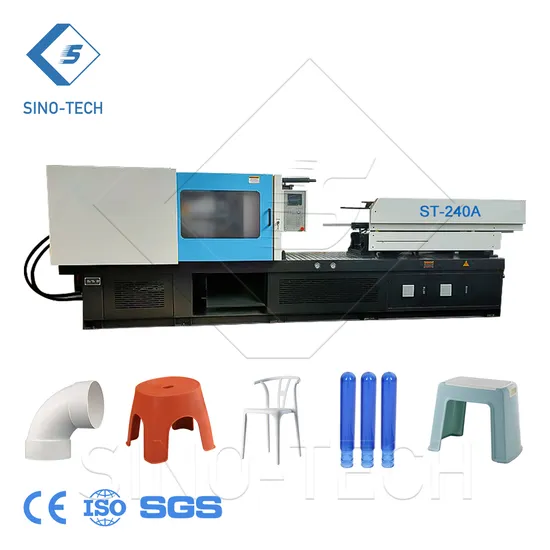

20mm, 32mm PVC Pipe Elbow Fittings Injection Plastic Machine

Product Description

Pet Plastic Bottle Jar Container Capsule Preform Production Make Special Servo Mold Making Injection Molding Machine
Product Description
SINO-TECH ST-500SElll injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-500SElll with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		450SElll
		4500-3508
Screw diameter	mm	70	80	94
Theoretical shot volume	cc	1539	2011	2776
Shot weight (PS)	g	1401	1830	2526
Shot weight (PS)	oz	49.5	64.7	89.3
Length/Diameter ratio	L/D	24.2	21.2	18
Injection pressure	MPa	228	174	126
Injection rate	cm³/sec	352	460	635
Injection stroke	mm	400
Max. Screw speed	rpm	170
Plasticizing capacity (PS)	g/s	72.7	94.3	131.3
Injection unit force	Ton	12
Carriage stroke	mm	480
Clamping force	Ton	450
Max. daylight	mm	1600
Clamping stroke	mm	780
Distance btwn. Tie bars	mm	820*820
Min mould dimension	mm	570*560
Mould thickness range	mm	300-820
Ejector force	Ton	16.6
Ejector stroke	mm	240
No. of ejector pins	unit	17
Max. motor power	kW	50.7
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	275
No. of heater zones	unit	5+1
Heater input power	kW	34.94
Ultimate capacity	kw	86.64
Current	A	118.5
Net weight	Ton	16.72
Oil filling capacity	L	700

Detailed Photos
