High-Efficiency Baby Pull-up Pants Production Machine with Servo Technology

Product Description

Welcome to the World of NEW YUHONG
Experience the Excellence of Our Full Servo Baby Pull up Pants Machine Product Description

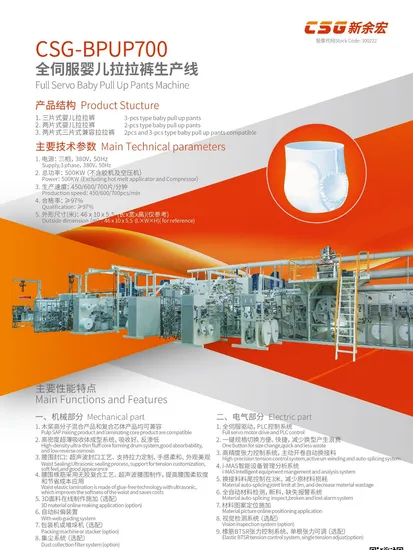

CSG-BPUP700 FULL SERVO BABY PULL UP PANTS MACHINE
Product Stucture
1	3-pcs type baby pull up pants
2	2-pcs type baby pull up pants
3	2pcs and 3-pcs type baby pull up pants compatible
Main Technical Parameters
1	Supply,3 phase,380V,50Hz
2	Power:500KW(Excluding hot melt applicator and Compressor)
3	Production speed:450/600/700pcs/min
4	Qualification:≥97%
5	Outside dimension(m):46 x 10x 5.5 (L×W×H)( for reference)
Main Function and Features
(I)Mechanical part
1	Pulp SAP mixing product and laminating core product are compatible
2	High-density ultra-thin fluff core forming drum system,good absorbability,and low reverse osmosis
3	Waist Sealing:Ultrasonic sealing process, support for tension customization,soft feel,and good appearance
4	Waist elastic lamination is made of glue-free technology with ultrasonic, which improves the softness of the waist and saves costs
5	3D material online making application (option)
6	With web guiding system
7	Packing machine or stacker (option)
8	Dust collection filter system (option)
(II)Electric part
1	Full servo motor drive and PLC control
2	One button for size change, quick and less waste
3	High-precision tension control system,active un-winding and auto-splicing system
4	i-MAS Intelligent equipment mangement and analysis system
5	Material auto-splicing joint limit at 3m, and decrease material wastage
6	Material auto-splicing inspect,broken and lost alarm system
7	Material picture online positioning application
8	Vision inspection system (option)
9	Elastic BTSR tension control system, single tension adjust(option)

Detailed Photos
Sales Service
Company Profile
ZHEJIANG NEW YUHONG INTELLIGENT EQUIPMENT CO., LTD.
With a legacy spanning nearly 30 years in the design and manufacturing of disposable hygiene machines, including sanitary napkin machines, under pad machines, and adult & baby diaper machines, we proudly deliver over 30 production lines annually. Our unwavering commitment to quality has earned us the trust of thousands of satisfied customers worldwide, particularly in China, Southeast Asia, the Middle East, and Europe, where we enjoy an esteemed reputation.
FAQ
