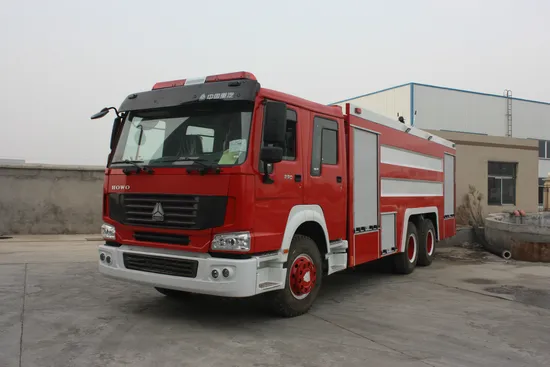

HOWO Rhd Fire Fighting Truck, 12, 000liters Water Foam Powder Tank Fire Engine Truck Price

Product Description

CHENGLI SPECIAL AUTOMOBILE CO.,LTD
I. Product description:
Fire truck also called fire tanker,fire engine ,fire appatatus ,water fire truck ,foam fire truck ,fire rescue truck) is a vehicle designed primarity for fire fighting operations-to extinguish fire efficientyly to prevent fire spread ,reducing the loss caused by fire maximumly.
Fire fighting truck can be divided into many types:
a. According to vehicle size ,there are mini fire fighting truck ,light fire fighting truck ,medium fire fighting truck ,heavy-duty fire fighting truck;
b. According to chassis drive type ,there are 4x2 fire fighitng truck ,6x4 fire fighting truck ,8x4 fire fighitng truck and off-road type 4x4,6x6 fire truck;
c. According to chassis brand,ther are ISUZU ,Dongfeng,FOTON,FAW ,SINOTRUCK ,etc.
d. According to fire agent,there are water tank fire fighting truck ,water/foam fire fighting truck ,dry powder fire fighting truck II. Details of HOWO RHD fire fighting truck, 12,000Liters water foam powder tank fire engine truck price
III.Specification of HOWO RHD fire fighting truck, 12,000Liters water foam powder tank fire engine truck price

Model	/	ZZ1257
Drive model	/	6x4, right hand drive
Cabin	/	double cabin,two row
Overall dimension(L*W*H)	mm	10025x2500x3600
Total mass	kg	25000
Rated Loading capacity	kg	15000
Kerb Weight	kg	14800
Wheel Base	mm	4600+1350
Front/rear track	mm	2022/1830
Approach/ departure angel	(°)	16/18
Spring number	/	10/12
Front/rear suspension	mm	1500/2445
Type & Size of Tyre	/	12.00-20
Engine	Engine model	/	WD615.69
	Engine Manufacturer	/	WEICHAI
	Maximum power	HP/kw	336/247
	Fuel type	/	diesel
	Displacement	ml	9726
	Max Torque	N.m	1500
	Rated torque speed	rpm	2200
	Emission Standard	/	Euro II
Tank Volume(12,000L water)
Fire pump	Model	/	CB10/60,Normal pressure pump
	Pressure	Mpa	≥1.0
	Max suction height	m	7
	Flux	L/S	60
	Rated speed	r/min	3000
	Time of drawing water (s)	s	≤45
	Input diameter	mm	150
	Outlet diameter	mm	3xΦ100
Fire monitor	Model	/	PL48
	Fire fighting nozzle range	Water (m)	≥65
		Foam (m)	≥55
	Flux	L/S	48
	Rated Working pressure	Mpa	1
	Rotation angle	(°)	360

IV.Fire Truck Details
V.Fire Truck Production workshop and testing
VI.SHIPMENT ( RORO or BULK VESSEL)
RORO: The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The truck is lifted by crane then put on the vessel deck. This model is much cheaper.
CONTAINER: The truck is put into the container. This model is used for small model trucks
The truck is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
VII. ABOUT US
CHENGLI SPECIAL AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,
product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck ,
wrecker truck , refrigerated truck and etc.
Main info as below:
Established from 2004. 12 independents workshops. 1000 sets of equipment, 25 assemble lines. 300 senior engineers and technicians. About 8000 workers. 800kinds of LPG, trucks and semi-trailers. 20 years wholesale experience Turnover 250 million and Export 20million annually Turnover 2 billion trucks and semi-trailers annually. LPG/Truck Sold to 90 countries Cooperates with DONGFENG,SINOTRUK,I-SUZU,FOTON,FAW,BEIBEN etc.
FAQ
Why choose us?
Experience
More than 15 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system
and passed the ISO9001-2008 and the 3C (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,
faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
Any more information regarding to fire truck,please do not hesitate contact with us!
