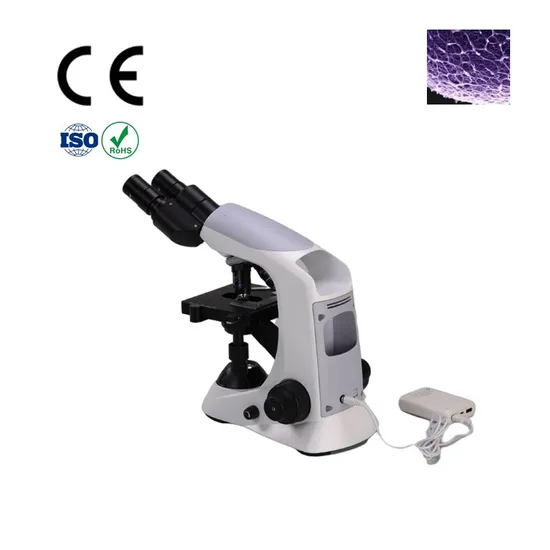

Binocular LED 40X-2000X Medical Biological Microscope with Elegant Design

Product Description

B301 Series Biological Microscope
--New Design in 2019 For Student & School Excellent Optical Quality System --China Industrial Best Design Award-Red Star Winner Product! --3W LED High Brightness, Support Cordless Charging Battery or Solar Power --Elegant Design With Built-in Easy Handle For Easy Moving + Wire Winding Device --Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor
Technical Parameter
Total Magnification

Objective Eyepiece	4×	10×	40×	100×
10×	40×	100×	400×	1000×

Head : Inclined 30°,Monocular head or Butterfly Siedentopf head (Binocular ,Trinocular) , Interpupillary adjustable distance is 48-75mm, Diopter adjustable range ±5° , anti-fungal. Nosepiece: Quadplex Nosepiece. Mechanical stage: Size 125mm×116mm , Y-X travel 35mm×75mm. Focusing system: Coaxial Coarse And Fine Focusing Knobs, Coarse stroke maximum 25mm, Fine division 2µm. Condenser: Abbe, N.A. 1.25, Adjustable aperture, up-down range 12mm. LED Light Source: Input voltage DC5V~12V,50/60Hz , ≥1000mA , Power adapter input voltage AC100V~240V,50/60Hz,LED lamp:Color temperature 4000K~5000K,Working life above 100,000 hours.
Maintenance
--- If the lens surface has dust, please clear with a blow ball. If the lens surface with fingerprints or oil stain, please clean gently
with absorbent cotton or lens paper dipped in a little ethanol ether mixture (ratio 1:4) .
Absolute alcohol is an inflammable material, please turn off the power and don't close to open fire , Please assure indoor
ventilation.
---Don't use solvent to wipe non-glass parts unless with soft hairless cotton in little neutral cleanser.
---Don't disassemble microscope parts, otherwise result in damage for performance.
After Service
---Product Warranty is 3 year since delivery date, the used life is ten years.
---During the period, if any quality deffect part (non-human damage), we will bear shipping cost and send new part as
replacement to you.
---Any part caused by human damage, we will only charge for material cost, and buyers need to pay shipping cost.
---Exceed the warranty period, we will also only charge for material cost, and buyers need to pay shipping cost.
---If there is any problem or question of using our product, we will offer technical support by email or facetime by phone etc. This
service is lifelong.
Favorable Reception
FAQ
Q1: How do I know which model is suitable for my product application?
You just need to tell us the following information then we can offer you a suitable solution? In addition, you can also send us the specimen and we will arrange professional engineers for proofing evaluation.
1) What is your product? required detailed specifiction?
2) What is the current production process?
3) What is your desired budget and delivery time.
Q2: When I get this microscope, but I don't know how to use it. What should I do?
We will send teaching video of both installation and operation, as well as the English manual. If you have further questions, we have engineers who can speak English can serve you on-line directly. And for some countries , like in India, Malaysia, Korea,Spain, we have local support team, more countries will be in the picture soon.
Q3: How can I do if the Microscope goes wrong?
We guarantee product quality for 36 months, during this period, if spare parts of the machine were not man-made damaged, we can send the component to the customer in best delivery. Besides guarantee period, we still provide you free online services for life.If parts broken, you can order replacement parts from us.
Q4. Can you customized product according to different application?
Yes, CNOPTEC is very dedicated to combine with our current ability with the main leading supplier to offer you the customized application.
Q5. What is your normal lead time?
Generally standard machine, our lead time is 2-7 days after PO confirmed. Customized product need a little longer.
Q6. Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition
Q7:Why should I choose CNOPTEC compared with other companys?
We are factory with 453 employees, turnover reached 100 millions USD in 2019, ISO 9001/13854 certificated and most products are CE/SGS/Rohs approoved, can offer you a high-quality pre-sale, in-sale and after-sales solution.
