Af-120 Spunbond Nonwoven Fabric Recycling Pelletizing Machine

Product Description

AF-120 Spunbond Nonwoven Fabric Recycling Pelletizing Machine
The screws and another consisting parts are designed respectively against the features ot different materials such as PP,PE,PS,ABS,PA,PVC,PC,POM, EVA, PET, PMMA etc, they are suitable for the purpose of material color blending.
High torque design enables speed reducer to work stably without noise. Hardness treatment features the screw and barrel with good
tear and wear resistance, good compounding effect and high production.
Air-exhausted system or common vented hole can get rid of water and waste gas out of the material. This enables more stable extrusion and more solid pellet, so the super quality of product is guaranteed
The customer can select a suitable machine among single segment style, and two-segment style according to production requirements. The special design can assure the good compounding effect and more solid pellet. This kind of production line is especially suitable for recycling dirty waste and production of repelletizing.
Gear box: High-torque design; Low-noise; Smooth running
Special barrel design can assure better compounding effect so as to improve the problem of black point and chromatism.
Equipped with a force feeder and hydraulic screen changers according to material's special character,
Vacuum or common gas exhaust system, which fascinates getting rid of damp, waste gas, impurity, can ensure a more stable extrusion and more solid pellets.
Process flow of plastic granulating machine:
Conveyor→ hopper→ Extruding system→ hydraulic screen changer system and mould→ water tank →pelletizer→ vibrating selector→ Air Blower → Storage silo
Detailed description of plastic granulating machine:
1. Conveyor:convey waste plastic material scraps and flakes into extruder hopper.
2. Extruding system:plasticizing material and exhausting gas.
3. Hydraulic screen changer system and mould: filter material impurity,to make production more clean and stable.
4. Water tank:cooling plastic material.
5. Pelletizer:cut plastic to pellets.
6. Vibration selector:remove bad pellet and keep good pellet.
7. Air Blower:convey good pellets into silo.
8: Storage silo:keep pellet
Recycling pelletizing granulating machine models:

Model	screw dia.	L/D	motor power	output (kgs/hr)
AF-45	45mm	25-35	7.5kw	30-60
AF-65	65mm	25-35	22kw	60-100
AF-80	80mm	25-35	30kw	100-150
AF-100	100mm	25-35	45kw	120-200
AF-120	120mm	25-35	55kw	200-350
AF-150	150mm	25-35	110kw	300-500

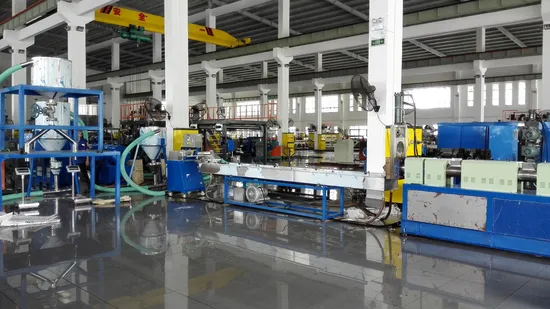

Waste plastic recycling pelletizing granulating machine photo:
Single extruder pelleitzing machine
Water ring die face pelletizing machine
Waste plastic recycling pelletizing and granulating process:
Machine shipment:
Packaging and shipping:

PACKAGING	plastic film + stretch film + wooden case + drying agent.
DELIVERY	About 60-80 days (all new parts)
SHIPPING	We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent). We care each and every point so that our clients could receive the machines in perfect situation.

What is our service system?

PRE-SALE	a. Detailed machine introduction; b. Suggest suitable turnkey solution as per clients requirements; c. Provide test production for reference;
IN PRODUCTION	a. Supply layout drawing to clients for preparation; b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc; c. Keep the clients be informed of the production status;
AFTER SALE	a. Send engineers to overseas for installation ,commissioning and training; b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests; c. Offer help if any need from clients like spare parts need etc; d. Supply necessary technical support at request;

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if I buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
