5m/5s/5hg Vertical Turret Milling Machine with High Precision

Product Description

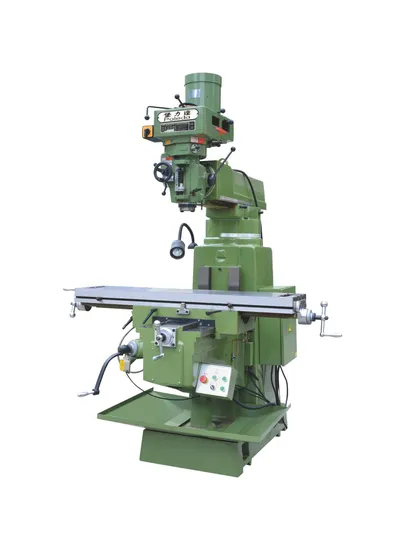

5M /5S/5HG/5H vertical metal turret milling machine
China universal milling machine We are the most professional.
There is no best, only better
Product Description
Product Parameters
Product introduction
Turret milling machine can also be called rocker arm milling machine, rocker arm milling, universal milling. Turret milling machine compact structure, small size, high flexibility, milling head can turn around 90 degrees, front and back rotation 45 degrees, the rocker arm can not only telescopic, and can be 360 degrees in the horizontal plane rotation, greatly improving the effective working range of the machine tool.
Make up
The body of universal radial milling machine is made of high-grade cast iron, which has high precision and long life after artificial aging treatment. The lifting platform adopts rectangular guide rails with many contact surfaces and rigid feet. After high frequency treatment and fine grinding, the slide is plastinated with excellent motion accuracy and life. Universal radial milling machine spindle is made of chrome-molybdenum alloy, with precision angular contact bearing, after tempering treatment and fine grinding, strong cutting force, high precision.
use
Turret milling machine is a kind of lightweight universal metal cutting machine, with vertical and horizontal milling two functions, can mill the flat, inclined, groove and spline of medium and small parts. Widely used in machining, mold, instrument, instrument and other industries.


Turret milling machine mechanical characteristics
The casting is made of m Mihanna cast iron, with good rigidity, no deformation and good stability.
The main shaft is made of chrome-molybdenum alloy, after tempering, heat treatment, grinding, and with precision bearing combination, strong cutting force and excellent precision.
Milling head gear box made of cast iron, good rigidity, low deformation, heavier gravity, more accurate cutting, milling head more durable.
The screw cap on the three-axis screw is made of advanced phosphorus bronze, wear resistance, long service life.
XY shaft slide after high wave heat treatment, good wear resistance, increase service life. XY axis interface attached with imported wear-resistant plate is easy to operate, wear rate is small, durable.
Equipped with lubrication system, uniform distribution of oil points, to ensure smooth slide.
The machine is 100 kg higher than similar products.
5hp powerful motor, high rigidity and precision NT40 spindle, suitable for large parts and heavy cutting
Milling machine maintenance
1. Cleaning: disassemble and clean the scraping skin of each part; Wipe the sliding surface and guide surface, wipe the table and the transverse, lifting screw, wipe the tool and the tool holder.
2, lubrication: keep the oil holes clean and smooth and fill 32# lubricating oil; Fill lubricating oil on each guide rail surface, sliding surface and each screw; Check the oil pot, oil level, and oil to the elevation.
3, tighten: check and tighten the pressure plate and insert screws; Check and tighten table limit screws, tool drive mechanism, three-ball handle, table bracket screws.
4, adjustment: check and adjust the milling head belt, pressure plate and insert tightness is suitable; Check and adjust limit stop and screw clearance.
5, anti-corrosion: remove the rust of each part, protect the paint surface, do not collide; The guideway surface, Slide the hand wheel of the lead rod and other exposed parts prone to rust of deactivated and standby equipment are coated Antiseptic oil
Milling machine maintenance
1. Cleaning: disassemble and clean the scraping skin of each part; Wipe the sliding surface and guide surface, wipe the table and the transverse, lifting screw, wipe the tool and the tool holder.
2, lubrication: keep the oil holes clean and smooth and fill 32# lubricating oil; Fill lubricating oil on each guide rail surface, sliding surface and each screw; Check the oil pot, oil level, and oil to the elevation.
3, tighten: check and tighten the pressure plate and insert screws; Check and tighten table limit screws, tool drive mechanism, three-ball handle, table bracket screws.
4, adjustment: check and adjust the milling head belt, pressure plate and insert tightness is suitable; Check and adjust limit stop and screw clearance.
5, anti-corrosion: remove the rust of each part, protect the paint surface, do not collide; The guideway surface, Slide the hand wheel of the lead rod and other exposed parts prone to rust of deactivated and standby equipment are coated Antiseptic oil

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages

Certifications
FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .

4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.

5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
