Toppro Automatic Disposable Paper Cup Machine/Paper Cup Making Machine for Hot and Cold Drink

Product Description

A.CHARACTERISTIC OF High Speed and Intelligent Paper Cup Machinery

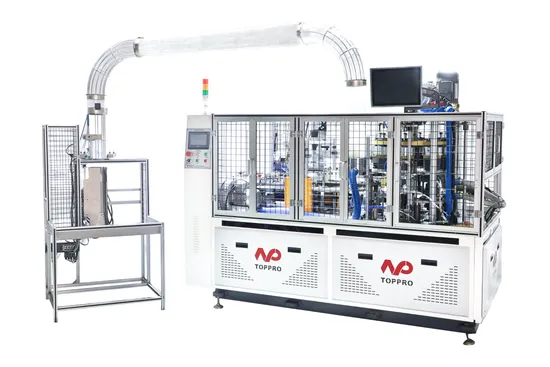

LF-90 MID-speed paper cup forming machine is a multi-station high-speed automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking. The machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.

Name	MIDDLE SPEED PAPER CUP MACHINE
HS Code	8441309000
Model	LF-90
Paper Cup Size	2-12oz
Raw Material	Single PE/Double PE
Speed	80-100 pcs/min
Suitable paper weight	170-350g/m²
Voltage supply	380V,50HZ
General power	10.5KW
Net weight	2200kgs
Measurement (mm)	Machine	2300*1250*1800
	Collecting table	L:850mm;W:950mm;H:1700mm
Cup Side Sealing	Ultrasonic sealing(ultrasonic is made in china)

B. MACHINE ADVANTAGE for LF-90 paper cup machine
Ultrasonic heating system for side sealing Double hot air heating for bottom forming

Use Geneva open cam The main motor with brake
instead of old dividing box transmission can set the testing stop positioning
makes driving more accurate,faster debugging positioning to be higher precision
and more reliable stability ensure the safety of debugging person

PLC controlling system Intelligent touch screen

Paper feeding system
The bottom paper feeding is adopted
Two channel sending system.
First use stepper motor transport.
Second adopt stepper motor precision feeding
to ensure accuracy and avoid waste.
Automatic lubrication system
This machine has automatic lubrication system, ensure the machine to keep long time running stably.
The design of the oil pipe, can lubricate each point more accurately.
We also add filter screen to keep the lifetime of oil core. Also this machine has oil pump and two valves, one valve for controlling the oil quantity, one is convenient to change oil.
Sliding block
The sliding block is imported from Taiwan
instead of the old linear bearing design
this block has a long lifetime, and high precision.
C. OTHER PAPER CUP MACHINE WITH DIFFERENT SPEED:
LF-70 (70-90 pcs/min) LF-110 (100-120pcs/min) GZB-600 (130-150 pcs/min_
D. COMPANY OTHER REALATED MACHINE:
we also have paper cup machine,paper plate machine,paper die cutting machine,ice cream cone sleeve machine,paper sleeve machine,paper bowl machine etc,can provide you full paper cup production line,if you are interested,pls feel free to contact me.

D. Packing details for LF-90 paper cup machine
Our Disposable Paper Cup Making machine will pe packed with strong woodencase, also will send
you english manual,electric diagram,operation CD,can teach you how to operate the machine and
change mold.
E. AFTER SERVICE for paper cup machine
1. Paper Cup forming Machinewarranty: 1 year
2. the guide booklet will be sent with machine to guide the installation
process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, ajustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole leson!
6. we supply the consumable spare parts for free for one year use.
F. FACTORY VIEWE for paper cup machine
Ruian Lifeng Machinery Co., Ltd (old name: Ruian Sincere Machinery Co., Ltd. ) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc. Especially the water cone cup machine, we get the patent in China. And all of our products have past CE, SGS. In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy". Welcome the clients at home and abroad to negotiate and cooperate.
G. Questions & Answers for high speed paper cup machine Q1. Are you trade company or factory? We are factory, not trade company.
Q2. What certification do you have?
We have CE, BV and SGS certification.
Q3. What is your delivery time?
Our mahcine need 25 -30 days in normal,
if your order is urgent, we can descuss aout that.
Q4. What is the HS code?
Our machine HS code is 8441309000
Q6. When the machine have problems,how you can sove it?
Firslty,we have 1 year warranty,we can provide comsumable spare parts for free
secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory,
Q7. What is the manual and instruction language?
The manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine.
Q8. Can we make different size in one machine?
High speed paper cup machine only can one machine one size,not adjust change mold
Q9,what is the meterial is avalisable for this machine?
The material is pe coated paper,normally all buy the printed and cutted paper cup fan from paper factory,i can introduce you some good price paper factory.
Q2. where is your factory and how to get there?
Our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province. china
you can by plane from your country to wenzhou city airport, then we will pick you up by car.
If you are interested in our machine,please don't hesitate contact me!
