Fast Production Rates User-Friendly 6 Cavity Blowing Machine

Product Description

Product Description
Automatic Plastic Bottle Blowing Machine.
Experience the future of bottle manufacturing with our cutting-edge Automatic Bottle Blowing Machine! Designed to effortlessly produce an array of hollow plastic containers, this machine guarantees unparalleled product quality. Its innovative structure is not only compact but also energy-efficient, ensuring smooth operations. With a focus on user-friendliness, it promises straightforward operation and hassle-free maintenance, making it the perfect addition to your production line.

Container	Max Container Volume Itr	2
	Max Neck Diameter mm	50
	Max Container diameter mm	110
	Max Container Height mm	320

PRODUCT SPECIFICATIONS

Model		U1-6000	U1-6000SF
Molding	Clamping Force kg	26000	26000
	Clamping Stroke mm	125	125
	Stretching strok mm	450	450
	Bottom Stroke mm	40/70	40/70
	Cavity Spacing mm	120	120
	Number of Cavity Cavities	6	6
	Carriage Unit pcs	162	162
Theoretical Output	bph	5000-6000	6000-7200
Electrical System	Total Power kw	75	78
	Heating Power kw	48x1.5KW=72	48x1.5KW=72
	Number of Lamp Layers Layers	8	8
Air System	Operating Pressure kg/cm²	7-9	7-9
	Low Pressure Air Consumpt Itr/min	3000	2000
	Blowing Pressure kg/cm²	20-30	30-40
	High Pressure Air Consumpt Itr/min	4800	6000
Chiller	Operating Pressure kg/cm²	2-4	2-4
	Temperature Range ºC	10-12	10-12
	Consumption kcal/hr	2000	3000
	Flow Rate Itr/min	350	350
Main Machine	Main machine dimensions mm(L*W*H)	3700 x2150x2150	3700 x2150x2150
	Main Machine Weight kg	5500	5700

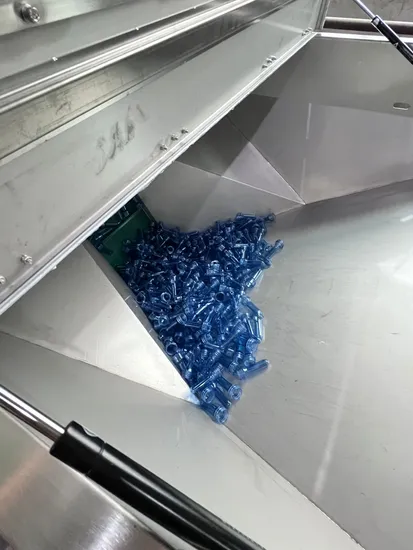

Preform Loader	Preform Loader Dimensions mm(L*W*H)	2350x1350x2650	2350x1350x2650
	Preform Loader Weight kg	550	550

Industry-specific attributes
Neck Diameter (mm): Our User-Friendly 6 Cavity Blowing Machine is engineered for versatility, accommodating a neck diameter of 38mm, perfect for diverse production requirements.
38mm: Specifically optimized for streamlined operations, ensuring compatibility with a wide range of bottle designs and enhancing production flexibility.
Max. Bottle Diameter (mm): Accommodating a maximum bottle diameter of 100mm, this machine is ideal for producing larger bottles, maximizing your production capabilities.
100mm: Tailor-made to support extensive bottle dimensions, enhancing your product range and boosting your operational efficiency.
Other attributes
Plastic Processed
PET
Condition
NEW
Application
Bottle
Weight (KG)
1500KG
Automation
Automatic
Warranty
1 Year
Key Selling Points
Easy to Operate
Applicable Industries
Food & Beverage Company
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Motor
Max.Bottle Height(mm)
310mm
Bottle Volume(ml)
2000ml
Brand Name
U1
Year
2024
Voltage
According to Customer
Dimension(L*W*H)
1900*1800*1930
Hollow part volume
/
High Pressure Valve Brand
amico
PLC Brand
Siemens
Power (kW)
15
Name
Bottle blowing machine
Product name
U1 bottle blowing machine
Function
making PET bottle
Material
HDPE LDPE LLDPE
Warranty
1 Year
Contral system
PLC
Brand name
U1
After-sales Service Provided
Video technical support
Marketing Type
New Product
Packaging and delivery

Packaging Details
Automatic Small Mango Grape Fresh Juice Beverage Bottling Filling Capping Machine
1. Secured with protective film and sturdy wooden casing for superior safety.

Port
Available for dispatch from Shanghai or other major ports.


Certificates and partners

FAQ
Q: How long is your delivery cycle after you order the machinery? A: Generally it is 40 working days.
Q: Do you have a relevant after-sales system? A: We have a Perfect after-sales system. 1: 12 months warranty. 2: Many-to-one service, we will solve basic problems through phone, email, whatsapp, WeChat and video calls. The operation manual will be sent with the machine or via e-mail. 3: If conditions permit, the engineer will go to the buyer's factory to install and test the machine, and train the buyer's staff on how to operate and maintain the machine.
Q: If I want to buy a machine, what information do I need to tell you? A: 1: What liquid do you want to fill? 2: What is the capacity and height of the bottle? 3: What is the output in one hour? 4: Related water quality analysis reports, etc. 5: Required mechanical voltage
Q:How to ensure that you deliver goods on time and ensure the safety of my funds? 1:We guarantee the on-time delivery and quality of the equipment you purchase through the credit insurance service. 2:With the letter of credit, you can easily lock in the delivery time. 3:After visiting the factory/video watching the factory, you can ensure the authenticity of our bank account.
Q:How do you ensure the quality of the machine? 1:To ensure the accuracy of parts. We are equipped with a variety of professional processing equipment, plus professional processing methods accumulated over the years. 2:Before the machine is assembled, each part is inspected by the inspector. 3:Assemble machines, all with masters with more than 5 years of work experience to operate. 4:After all the equipment is completed, we will connect all the machines and allow at least 12 hours for a complete production line to test its stability.
