Half Cover Automatic Hydraulic Metal Surface Grinding Machine Sga401000ah Sga401000ahr Sga40100ahd
| US$20,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SGA401000AH SGA401000AHR SGA40100AHD
Type
Surface Grinding Machine
Processing Object
Metel
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
500X1000mm
Wheel Size
355X50X127mm
Auto Feed
0.5-20mm
Magnetic Chuck
500X1000X1
Grinding Wheel Speed
1450rpm
Transport Package
Plywood Case
Specification
3490kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description

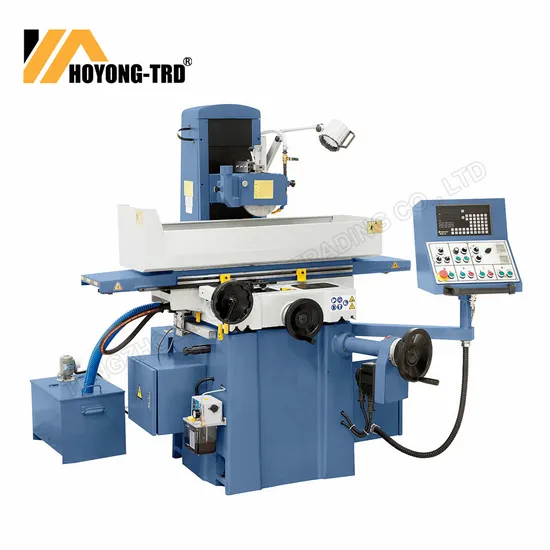

HYDRAULIC SADDLE MOVING SURFACE GRINDER MACHINEThe surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind
equipment for metal working. The well designed structure have good rigidity and keep the machine with high accuracy.Well designed
and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.
SPECIFICATIONS:
| MODEL | SG2050AH SG2050AHR SG2050AHD | SGA2550AH SGA2550AHR SGA2550AHD | SGA3063AH SGA3063AHR SGA3063AHD | SG30100AH SG30100AHR SG30100AHD | SG4080AH SG4080AHR SG4080AHD | SG40100AH SG40100AHR SG40100AHD | |
| TABLE SIZE | 200*460 | 254*508 | 305*635 | 305*1020 | 406*813 | 406*1020 | |
| LONGITUDINAL TRAVEL | 510mm | 640mm | 765mm | 1130mm | 910mm | 1130mm | |
| CROSS TRAVEL | 238mm | 300mm | 340mm | 340mm | 450mm | 450mm | |
| MAX DISTANCE FROM SPINDLE CENTER TO TABLE | 450mm | 580mm | 580mm | 580mm | 580mm | 580mm | |
| SPEED OF TABLE LONGITUDINAL MOVING | 5-25m/min | 7-25 m/min | |||||
| TABLE CROSS MOVING | AUTO FEED | 0.1-8mm | |||||
| RAPID SPEED | 990mm/min | ||||||
| FEED OF HANDLE | 0.02mm/div. | ||||||
| WHEEL HEAD VERTICAL MOVING | AUTO FEED | (AHD) 0.005/0.01/0.02/0.03/0.04/0.05mm/stroke | |||||
| RAPID SPEED | (AHD/AHR) 460mm/min | ||||||
| FEED OF HANDLE | 0.01mm/div.(AH) 0.005mm/div(AHR/AHD) | ||||||
| GRINDING WHEEL SIZE | 200*20*31.75 | 350*40*127 | 50HZ: 400*40*127; 60HZ: 350*40*127 | ||||
| MAIN MOTOR | 1.5KW | 5KW | 7.5KW | ||||
| PACKING SIZE cm | 190*170*215 | 217*212*213 | 235*222*213 | 295*222*215 | 285*227*215 | 295*227*218 | |
| GROSS WEIGHT KG | 1800 | 2400 | 2800 | 3500 | 3800 | 4300 | |
