Uhv (V) OEM High Voltage Tester Impulse Voltage Generator Lightning Impulse Tester

Product Description

Product Introduction Impulse voltage generator is mainly used for full wave of lightning impulse voltage, lightning impulse voltage clipping wave and operation impulse voltage wave test of electric power equipment, etc., to test insulation performance. Impulse voltage generator a power supply device that mimics the impulse voltage of lightning and operating overvoltage. It is mainly used in insulation shock withstand voltage and dielectric shock breakdown, discharge, and other tests.

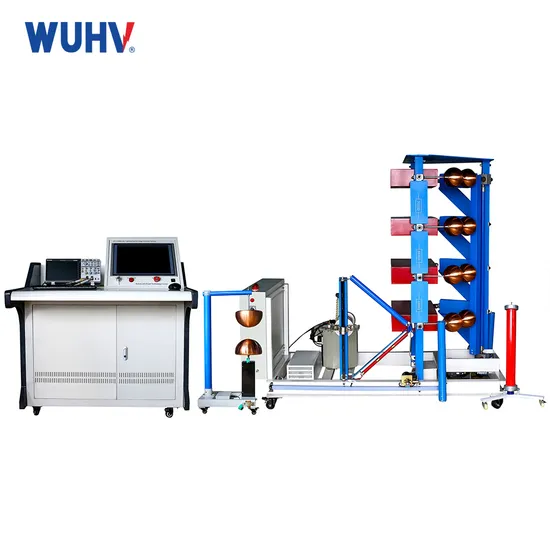

The production of 100 ~ 10000kV series of various capacity complete set of impulse voltage (current) test equipment. And can provide a variety of waveform series complete set of impulse voltage (current) generator. The impact test device is mainly composed of generator body, cut-off wave, voltage divider, four-component console (the console is divided into microcomputer type and common type), digital waveform recording system, etc.
Scope of application: transformer, reactor, transformer and other high voltage electrical appliances, high voltage thyristor valve SVC(HVDC), power cable, all kinds of high voltage insulators, bushing and other test products of standard lightning shock, lightning cut-off wave, operation shock and non-standard shock wave test required by customers. A single set of equipment can produce a variety of test waveforms (standard and non-standard waveforms, user-generated waveforms). Applicable fields: lightning protection and lightning test of quality inspection appraisal and measurement supervision institutions, power equipment manufacturers, railway communication, aerospace and aerospace aircraft, research institutions, colleges and universities, meteorological departments, etc.
Product Characteristics
1.The circuit has small inductance and adopts the filter measure with resistance, which can produce standard shock wave under the load of large capacitance and large load capacity.
2.High voltage utilization factor, lightning wave and operating wave are not less than 85% and 80% respectively
3.Easy to adjust wave, easy to operate, good synchronization performance, reliable operation.
4.Constant current charging automatic control technology, high degree of automation, strong anti-interference ability
Product Parameters

Charging voltage	Setting range	0 ~ 100kV
	Scope of work	20 ~ 100kV
	Setting deviation	≤ ±1%
	Don't stability	≤ ±1%
	Setting distinguish	0.1kV
Charging time	Setting range	30~180s
	Setting distinguish	1s
	Alarm time delay	2s
Number of pressure	Setting range	1~999
Protection setting	Overcurrent protection value	Can be set
	Overvoltage protection value	Can be set
	Dynamic charge protection	Can be set
Trigger pulse		More than 15kV, rising time less than 100ns, polarity can be switched
Output impact stability		More than 99%

FAQ
1. Is your company a sales company or a manufacturer?
Wuhan UHV Power Technology Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is.
After the goods have been ordered, it takes about 7 working days for production if there are no accidents.
3. Is the quality guaranteed?
To ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What is the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam, and other regions have cooperative distributors, can provide thoughtful services.
