Bl-V7 Metal-Cutting Tools Blin China Machining Fanuc CNC Milling Machine with Cheap Price
| US$26,000.00-29,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-V7
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, CNC Milling Machine
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.003mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
900*400mm
X/Y/Z Axes Travel
720/450/470mm
Spindle Type
Bt40
Spindle Motor
5.5kw
Spindle Speed
8000/10000/12000rpm
Tool Maganize Type
12t Umbrella/16t Arm
X/Y/Z Axes Rapid Movement Speed
36/36/30 M/Min
Positioning Precision
±0.005mm
Repeatable Positioning Precision
±0.003mm
CNC Controller
Siemens 808d Advanced/828d/Fanuc 0I Mf
Transport Package
Wooden Case
Specification
BL-V7
Trademark
BLIN
Origin
China
HS Code
8459619000
Production Capacity
500 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
-Suitable for medium-sized cutting
-3 axes adopt high precision linear guideway
-Designed by GERMAN engineer
-Whole production process accord to TAIWANESE standard
-Chips outlet set at back of machine
-Most parts adopt GERMAN/JAPANESE/TAIWANESE brand
-High speed, high precision, long using lifespan
-Adopt HT300 high class cast iron,after aging treatment and FEA analysis
-Bridge shape column, high rigidity, high stability
-3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching, pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:
| Item | Specification | Unit | BL-V7 |
| Worktable | Table size | mm | 900×400 |
| Table max. loading | kg | 300 | |
| T slot(NO./width/gap) | mm | 3/14/100 | |
| Travel | X/Y/Z axes | mm | 720/450/470 |
| Spindle | Distance from spindle nose to table surface | mm | 120~590 |
| Distance from spindle center to column surface | mm | 440 | |
| Spindle type | mm | BT40/Φ120 | |
| Spindle motor | kw | 5.5 | |
| Spindle speed | rpm | 8000(option:10000 belt-drive/12000 direct-drive) | |
| Feeding axes | Cutting feed speed | m/min | 10 |
| X/Y/Z axes rapid moving speed | m/min | 36/36/30 | |
| X/Y/Z axes feeding motor | Nm | 6/6/11(SIEMENS 808D ADVANCED) | |
| X/Y/Z axes ball screw dia./pitch | mm | 32/16 | |
| X/Y/Z axes linear guideway width | mm | 30/30/30 | |
| Precision | Positioning precision | mm | ±0.005 |
| Repeatable positioning precision | mm | ±0.003 | |

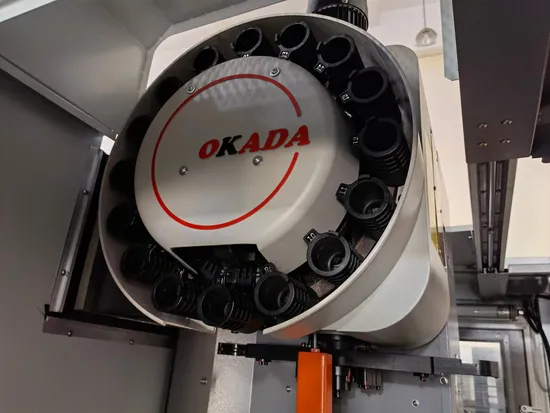

| Tool magazine | Tool magazine type | / | Arm type 16T |
| Max. tool weight | kg | 8 | |
| Max. tool length | mm | 200 | |
| Max. tool dia.(fully loaded) | mm | Φ80 | |
| Max. tool dia.(no adjacent tool) | mm | Φ150 | |
| Tool changing time | / | Tool to tool: 1.8s | |
| Others | Overall dimension(L×W×H) | mm | 2220×2000×2160 |
| Weight | kg | 3200 |
Main parts brand:
| Item | Brand |
| Spindle bearing | JAPAN-NSK |
| Ball screw bearing | TAIWAN-TPI |
| Ball screw | JAPAN-THK/TAIWAN-HIWIN |
| Linear guideway | JAPAN-THK/TAIWAN-HIWIN |
| Spindle unit | TAIWAN-VYU CHENG |
| Tool magazine | TAIWAN-OKADA |
| Booster cylinder | TAIWAN-HAOCHENG |
| Pneumatic parts | TAIWAN-AIRTAC |
| Electric parts | FRANCE |
| Lubrication pump | TAIWAN-BEISUN |
Standard Configuration: -SIEMENS 808D ADVANCED CNC Controller
-16T ARM type tool magazine
Optional configuration: -SIEMENS 828D/FANUC 0I MF CNC Controller
-12T Umbrella type tool magazine
-4th axes
-Tool setting probe
-CTS(coolant through spindle)
