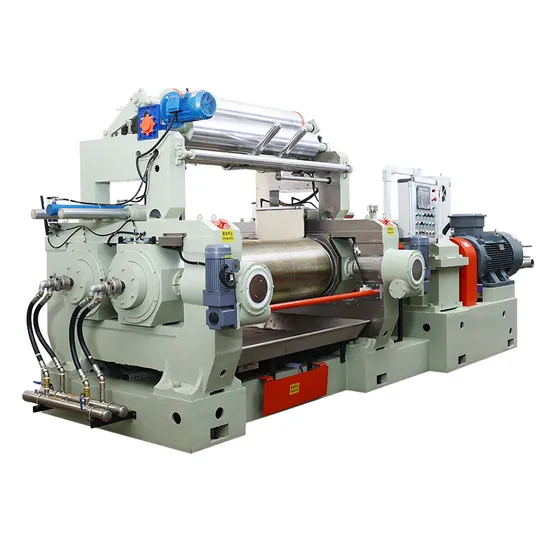

CF-16/22inch Rubber Mixing Mill Open Mill for Plastic Film

Product Description

1. Mainly used for: natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and other processes.
2. Bearing seat: Made of high-quality steel precision casting and processed with high-precision CNC, it has strong load-bearing capacity and good seismic resistance.
3. Bearing lubrication: Adopting a forced circulation lubricating oil system toreduce manual maintenance.
4. Base: Made of high-quality steel plates welded together, with anintegrated structure and good seismic resistance.
5. Roller pitch adjustment: can be customized according to customerrequirements, electric adjustment or oil pressure adjustment.
6. Rubber flipping: Can be customized according to customer. requirements, with an automatic glue flipping system to reduce manual labor intensity.
7. Operation: The equipment is easy to operate and easy to maintain.
8. Safety: Install emergency stop buttons in front and back for quick shutdown.

CF open mill model	CF-400 16inch	CF-450 18inch	CF-550 22inch	CF-560 24inch	CF-660 26inch
Materials/Process	Max feeding quantity (KG/Batch) (Capacity depending on formula materials)
All Rubber/Plastic	40	55	90	150	210
*All production rates should be factory verified.

CF open mill model		CF-400 16inch	CF-450 18inch	CF-550 22inch	CF-560 24inch	CF-660 26inch
Power	kW	45	55	90	110	250
Roller specification	mm	400*1010	450*1200	550*1530	610*1830	660*2130
Front roll line speed	r/Min	18.78	21.1	23.4	25.8	29.8
Maximum roll distance	mm	10	12	15	15	15
Speed ratio	adjustable	1:1.27	1:1.27	1:1.29	1:1.29	1:1.29
Overall weight	kg	8000	10000	22000	22500	32000
Length	mm	4000	4550	5630	6100	6240
Width	mm	1500	1660	1946	2050	3350
Height	mm	1870	2015	2200	2200	2670
*All production rates should be factory verified.

After-sales service In-sale:
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the lates progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.

Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic,rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people. We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation. Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!
