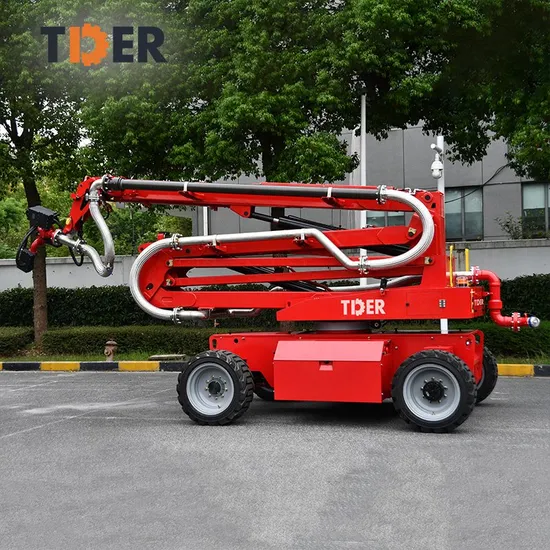

Tder New Product 16m Hydraulic Extension Arm Articulated Telescopic Boom Fire Engine Lift

Product Description

Overall length	6.02m
Overall width	2.40m
Overall height	2.61m
Maximum platform extension	900mm
Wheelbase	2.40m
Minimum Ground Clearance	235mm
Overrun Height	130mm
Maximum Platform Height	>16m
Wireless Remote Control Distance	>300m
Turning Radius	12m
Turning speed	1.34rpm
Turning Angle	355
Traveling speed (closing)	2.0 m/s
Traveling Speed (Raise)	0.3 m/s
Drive type	4x4.4x²
Traveling motor	3.5kw x4
Tire specification	315/55D20
Hydraulic station overflow pressure	18Mpa
Battery capacity	51.2V/420AH
Endurance	6Hrs
weight	7,000kg

Packaging & Shipping *The extra security packing will be carried out for the nude cargo.
*Ropes and triangle blocks will be used for fixing forklifts.
*We also offer wooden packing way to make the forklifts safer.
*Product certificates and nameplates are provided.
*A tutorial CD, tool box and extra paint are included as free gifts.
Certifications
Company Profile Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.
Customer Feedback

Why Choose Us
TDER offers customized services. You can freely change the color, engine, LOGO and more. "TDER makes every mechanical gear customizable." FAQ 1. Why choose us?As a manufacturer, Tder industrial is committed to offer not only products with high quality and performance and competitiveprice, but also in-time delivery and comprehensive 7/24 after-sale services.2. What is the product range of our factory ?Tder industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklifttrucks and related attachments. We can also customize non-standard products according to customer's requirements.3. What payment terms can we accept?Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight withthe terms we agreed can also be accepted.4. What Certificates do we have?All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.5. How about our delivery time?Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliverimmediately. But customized products will take more time, depending on the requirements of your order.6. Can we provide OEM service?Tder industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
You can send an email or message to explain your needs, and we will recommend a suitable machine for you according to the model and configuration requirements provided.
