Stone Glass Fe SUS Food X-ray X Ray Inspecting Machine

Product Description

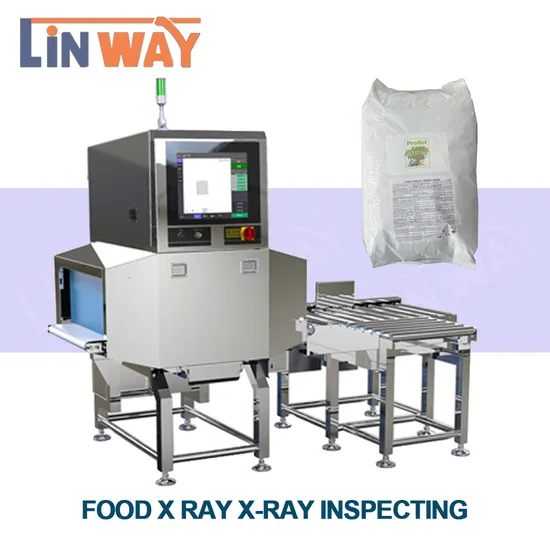

LW-XRI6030 6030 FOOD X-RAY INSPECTING MACHINE
OVERVIEW LW-XRI food x ray series are with high grade LINUX control system and industry design for detecting all metal, stone, glass, hard plastic foreign impurity contaminants(density is oven than water) detection in packaged or non-packaged food field such as bag, bottle or box, etc. It's popular in various industries like bulk food, seafood products, meat or poultry, salted products, pastry, nuts, fresh vegetables and fruits, chemical raw material, pharmacy, cosmetics, toys, etc. Product Description
LEADING FEATURES Compact & rigid 304SUS body frame.
Automatic detecting foreign contaminants and loss with high sensitivity.
Base on LINUX control with reliable performance.
User friendly control panel for easy and quick operation
Automatic product learning function for simple and easy to operate.
Various flexible rejection systems are available as per project request.
Food grade belt material for GAP standard
Data records can be summarized and saved
Tool-free parts release for easy clean and low maintenance
Multi-language control menu is available
2 years warranty period from the date of leaving our factory OPTIONS AVAILABLE AI Learning Technology for Filling Level Detecting
No-good sealing bag detecting
SPECIFICATIONS

Model	LW-XRI6030
Running Belt Width	600mm
Whole machine length	2700mm
Detecting Tunnel Height	300mm or customized
Detecting way	big large heavy duty bag pouch carton box
Data support port	USB port
Parameter setup	Touch screen menu setup
Photo save way	Direct save
Machine frame	304SUS for easy clean
Temperature control	Included industry air conditioner
Working temperature	0-40°C
Operation panel	17" color touch screen
Menu language	Chinese/English or others
Operation system	Linux
Reject System	Stop with alarm light or Output reject signal with cylinder-pusher
Visual Signal	X ray/power/failure indicator
Belt height from floor	750±50mm adjustment
Belt material	Food grade
Detecting sensitivity (empty run)	SUS or FE metal ball Φ1.0mm Glass ball: Φ3.0mm, ceramics: Φ2.5-3.0mm Rubber ball: Φ3mm
Running direction	From left to right as standard
Belt speed	0-40m/min adjustable
X ray source	350W
Air consumption	4-6bar
Safety Security	Included radiation curtain <1usv/h
Power Supply	AC220V±10%/380V, 50HZ, 3KW

Application (packaged bag, bottle, tank, box, carton, bucket, jar, tin, etc.)
Q: What's Linway fist products?
A: Quality inspecting machine, Checkweigher, metal detector, color sorting, vision counting and related machines.
Q: Why do we need quality inspecting machines?
A: Automatic inspecting is more efficient, reject NG goods, reduce client's complaints, maxinum protect your brand.
Q: How to choose a good check weigher?
A: Confirm weight, package size, exptected accuracy and speed, running direction, rejecting device, etc.
Q: How to use your metal detector?
A: Pluge to run easy operation with our auto product learning function
Q: More about optical sorting machine?
A: The optical color sorting machine is a device of automatic sorting out the NG defective material by using the optoelectronic detecting technology according to difference of the optical characteristics of the materials.
Q: What's the advantages of food X-ray inspecting Machine?
A: X-ray inspection system takes advantages of the penetrating power of X-ray to detect contamination material. it can achieve a full range of contaminants inspection checking metal, non-metal contaminants, such as glass, ceramic, stone, bone, hard rubber, hard plastic, etc. It can inspect metal, non-metal packaged or canned products, and the inspection effect will not be affected by temperature, humidity, salt content, etc.
Q: OEM or Customization is available?
A: Yes, both are possible.
