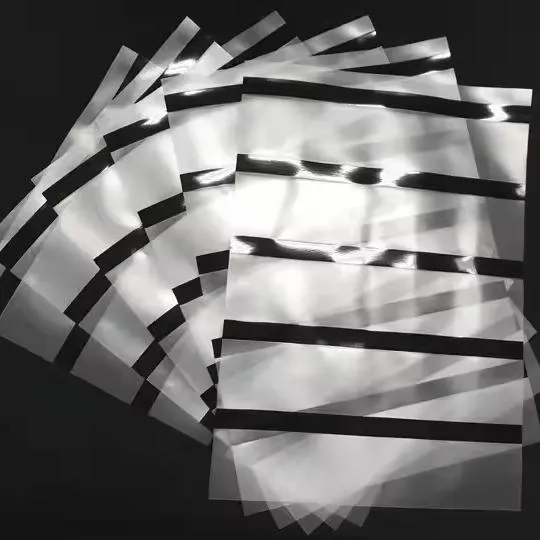

Mangetic Stripe for Polycarbonate PC PVC Overlay Film for ID Card Making

Product Description

Product Description:

Product name	High Quality Transparent PVC Coated Overlay
Common size	A4, A3, A3+ and customized
Thickness	0.04mm/0.08mm/0.10mm
Appearance	clear
Coated	one side with glue
Glue type	Common Glue, Strong Glue
Laminating temperature	110-150ºC
Storage	-10~35ºC, sealed, moisture-proof
Shelf life	2 years
Packing	500 pcs / bag

Magnetic Stripe spec.
For PVC Substrate laminating

Product Code	Coercivity Oe	Color	Application Temperature	Process method	signal amplitude	Typical applications	Typicl Substrate
LK300TV1	300	Black	110‐160°C	Laminate	80-130%	Plastic cards Bank cards	PVC
LK300TV2	300	Brown	110‐160°C	Laminate	80-130%	Plastic cards Bank cards	PVC
LK650TV1	650	Black	110‐160°C	Laminate	80-130%	Plastic cards Bank cards	PVC
LK2750TV1	2750	Black	110‐160°C	Laminate	80-130%	Plastic cards Bank cards	PVC
LK4000TV1	4000	Black	110‐160°C	Laminate	80-130%	Plastic cards Bank cards	PVC

Card making processing:

1:Put the printed sandwich layer aline with adhesive films and then put into the laminate machine.(please note adhesive side inside).
2:Laminated time usually is 10-15 minute,pressure is 6-8MPa,temperature 120-140.
3:Put the laminated sheet out then cutting and punch card

Please Note:laminate temperature, pressure need to according to the actual situation, Under the premise of without damage the high the better.
Company Profile:
Shanghai Wallis Technology Co., Ltd. is the professional manufacturer with 4 plants in full series of high quality Plastic Sheets, including Offset Printing/Inkjet Printing/Digital Printing material (PVC,ABS,PET,PETG,PC) widely used for Card-Base ; Final Blank Card,Member Card,ID Card,IC Card,Gift Card,Bank Card,Hotel Card,Inlay Card with Customized Size and Printing ; POLYCARBONATE and CAST ACRYLIC sheet for Sign and Construction ; Self Adhesive PVC SHEET for Ablum with more than 10 years experience to offer you Advanced and Competitive Products with professional service .
Package:
Certification:
FAQ:
1. Why Choose us?
Wallis insist strict QC during producing, product performance are ensured.
Strong technical team-quick to solve problems, creative to design new items, latest RFID items .
Big capacity-cost-effective and flexible to adjust production for volume and urgent orders.
10-year factory experienced in all crafts, and with strong customization capacity, satisfy your requirement to the best.
Having long-term and stable material suppliers, sources are trustable and time-effective.
Owning professional agents of shipping. Goods reach to you fast, save and cost-effective.
2. What is MOQ?
100 Pcs PVC inkjest printing sheet.
100 Pcs for Standard Card, Gift Card ,Name Card .
500 pcs OEM cards
3. Can I order if quantity less than MOQ?
Yes and it would be taken as sample order to production. We take more serious on sample order.
4. Can I get Free Samples?
Yes, If samples we have in stock would be provided for testing, but shipment should at your side.
If samples are needed to customize with your logo and designs, please send us designs and advise chip, quantity, and any other details required. Thank you.
5. Can I order with my logo printing, size and shape?
Yes, of course it can. We do OEM. And the original artwork prefer in Abode Illustrator, PDF, CDR9 or CDRX4. In PSD is ok, DPI should over 300.
