Automatic Nonwoven Polyester Fiber Thermal Bonded Wadding Machine Polyester Fiber Carding Machine / Felt Making Production Nonwoven Carding Machine
| US$11,200.00-16,000.00 | 1 Set (MOQ) |
Basic Info.
Certification
CE
Customized
Customized
Condition
New
Working Width
1500-2550m
Customizable Width
1500-2550m
Product Specifications
80 ~ 1000 G / M2
Print Color
Following Customer′s Requirements
The Speed of The Output Fiber Layer
Less Than 40m/Min
Total Power
24 Kw
Suitable for
Fiber / Cotton Carding
Transport Package
Standard Export Packing for Foreign Trade
Specification
1500-2550m
Trademark
NHN
Origin
China
HS Code
8449009000
Production Capacity
8m/Min
Product Description

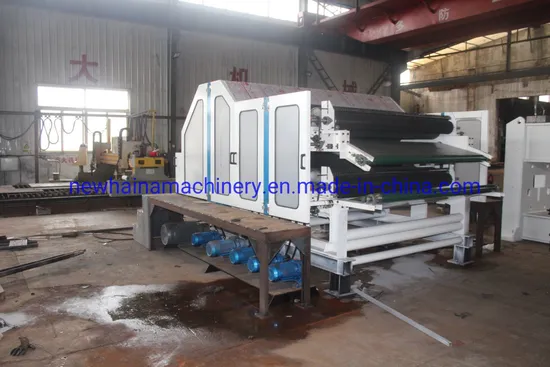

Non woven fiber New Single Cylinder and Double Doffer Carding Machine for Nonwoven Wadding Production Line made in China| NO. | ITEM | DESCRIPTION |
| 1 | Model | GMCD2-2500×Ф1230 |
| 2 | Raw materials work on | Processing of raw materials from feeding machine, the output fiber layer |
| 3 | Working width | 2500 mm |
| 4 | Production capacity | 200 kg/h(Reference 6 d first-grade product chemical fiber) |
| 5 | Fiber raw materials requirements | 3~15D×38~65mm |
| 6 | The speed of the output fiber layer | ≤40m/min |
| 7 | Total power | 24 KW |
| 8 | Main body | High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays |
| 9 | Feeding roller | With a pressure roller feeding uniformity. Feeding roller: 4sets , φ65mm |
| 10 | Metal detectors | Equipped with metal detectors, feedback and control power and warning |
| 11 | Diameter of Cylinder &doffer &mixed and disorderly roller | φ1230 mm; double doffer diameterφ492 mm, mixed and disorderly roller diameter: φ295 mm |
| 12 | No of groups | There are 5 carding working groups, so can get a very good carding effect |
| 13 | Dust collection points | There are 4 dust places |
| 14 | Working shield | Working shield with transparent organic glass, a mechanical rotation can be observed during it running |
| 15 | Power | Main motor 15kw, reducer 1.5kw *6 |
