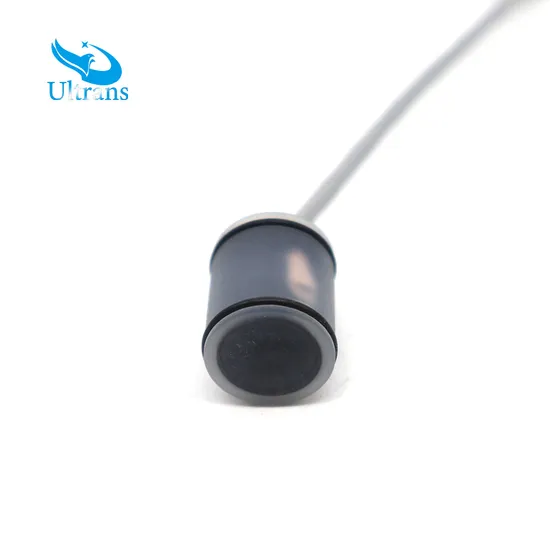

200 kHz Wind Speed and Wind Direction Ultrasonic Transducer for Meteorology Research Institute
Basic Info.
Model NO.
FYA-200-01DJ
Production Process
Injection
Sensitivity
High
Probe Type
Surface Wave Probe
Measuring Medium
Gas
Detection mode
Direct Reflection Type
IP Rating
IP68
Certification
CE
Customized
Customized
Frequency
200 kHz
Range
0.1~1.5m
Resistance
750 Omega
Capacitance
1000 PF
Echo
8 Mv
Voltage
<750 Vpp
Temperature
-40~80 Deg
Pressure
< 0.3 MPa
Material
PVDF
Protection
IP68
Weight
10g
Transport Package
Carton Packing
Specification
18x15x15mm
Trademark
ultrans
Origin
China
HS Code
9028901000
Production Capacity
30000PCS/Month
Product Description
Product Parameters| Center Frequency | 200 kHz, ±5% |
| Minimum and Maximum Sensing Range* | 0.1 to 1.5m |
| Minimum Parallel Resistance | 750 Ω, ±20% |
| Capacitance | 1000 pF,±20% pF @1 kHz |
| Echo Sensitivity (FOM) | @Driving Voltage : 200Vpp, Distance: 0.3m, Echo Amplitude: 8mV |
| Maximum Driving Voltage (2% Duty Cycle Tone Burst) | 750Vpp |
| Operating Temperature | -40°C to 80°C |
| Pressure | ≤ 3 kgf/cm2 or 0.3 MPa |
| Beamwidth (@ -3 dB Half-Power Angle) | 10.9°±10%, (@ -20 dB Acute Angle): 25.8°±10% |
| Housing Material | PVDF |
| Protection Level | IP68 |
| Weight | 10g±5% |
| Wiring Instruction: Integrated Type Connector: As Follows: | (3PIN, Terminal Red +, White-, Black: Shielded Wire) |
R&D Department
Testing
Assembling
Aging
Packing
Finish products
FAQ
Q: Are you manufacturer or trading company?
A: We are professional ultrasonic transducer/ultrasonic sensor/ultrasonic level meter manufacturer since 2008.
Q: What's your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
