Customized Paper Machine Small Loop Spiral Dryer Fabric

Product Description

Product Description Description Paper Making Dryer Fabric :Dryer fabric is a drying part of a wet paper web. The conventional drying system can dry the wet web from 60% moisture to 2% moisture with the help of drying fabrics. drying fabrics play an important role in giving a final shape and parameters to the paper drying fabrics also known as conveyor Belts.Spiral dryer screen's application in paper machine:1) Widely used in the production of cardboard with a net, kraft paper, corrugated paper, paper of train tickets, and single whiteboard paper:
2)Instead of a dry blanket, the canvas of paper machine drying:
3)Also widely used in printing and dying, food, salt industry, pharmacy, environment protection, etc.

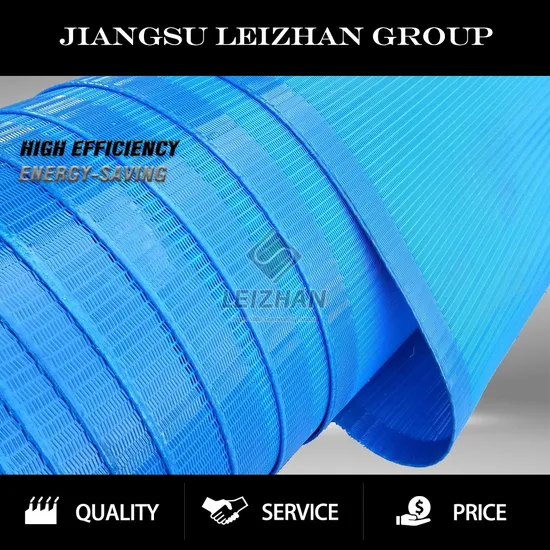

Detailed Photos
Product Parameters

Type	Spiral loop width mm	Filament diameter (mm)		Tensile strength N/cm	Weight Kg/m²	Thickness mm	Air permeability m³/m²h	CFM 127Pa
		Spiral ring monofilament	Connection Wire
5080A	5.2	0.50	0.80	1800	1.00	2.10	15000	937
Red 6280A	5	flat wires 62/30	0.80	1600	0.90	1.90	13000	820
6890A	8	0.68	0.90	2000	1.31	2.45	18000	1125
6890B	7.15	0.68	0.90	2000	1.40	2.45	16000	1000
7090B	7.5	0.7	0.90	2200	1.45	2.60	16500	1031
70100B	7.2	0.7	1.00	2200	1.50	2.54	16800	1050
Red 9090A1	8	flat wires 0.9*0.60	0.90	1800	1.60	2.80	17000	1060
9090A2	8	0.90	0.90	2300	1.80	3.03	19000	1188
