Gfrp Fiberglass Pultrusion Products Line FRP Rebar Pultrusion Machine

Product Description

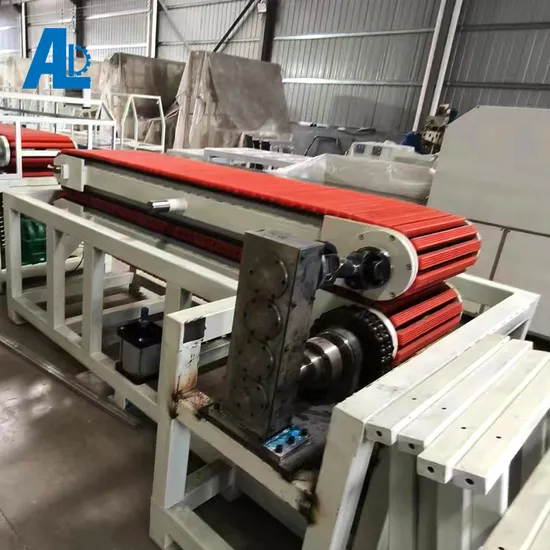

FRP Rebar Machine Technical Information
The machine is mainly used to produce FRP Rebar of various specifications. The machine can automatically complete slitting, impregnation, preforming, winding, heating and curing, traction, fixed length cutting and collection and stacking. I. Structure principle This unit mainly consists of yarn frame, dipping tank, winding, oven, traction machine, cutting saw and stacking device. 1,Yarn frame: placing yarn mass, using steel plate, steel pipe and angle steel welded structure. 2,Dipping tank: welded with stainless steel material, with pressure roller inside to make the roving fully impregnated in resin. 3,Winding device: Adopt gear drive to drive the thread roller to rotate around the product and wind out the thread. Adopt frequency conversion speed control mode, the speed is steplessly adjusted. 4,Winding device: Adopt gear drive to push down the winding tape wound on top of the FRP bar to form the thread Adopt frequency conversion speed control mode, the speed is steplessly adjusted. 5,Oven: Adopt stainless steel tube heater and intelligent temperature control instrument to control temperature. The heater box adopts split structure, which can be easily opened to clean up the dripping resin and filled with heat insulation and heat preservation material inside. 6, Automatic tracking cutting saw: It can cut the FRP bars on the production line online at fixed length according to the specific requirements. 7, Product stacking device: fiberglass reinforcement is stacked after cutting and taken away and yarded by production staff.

Type	Produce Diameter Range
2lines FRP rebar machine	DN4-40mm
4lines FRP rebar machine	DN4-32mm
5lines FRP rebar machine	DN4-26mm

FRP pultrusion machine
FRP pultrusion is one of new FRP production processes, it's formation easily, main material are fiberglass and resin, it is a continuous process for the manufacture of products having a constant cross section, such as rod stock, structural shapes, beams, channels, pipe, tubing, fishing rods etc. This system consist of roving racks, resin bath, mould calibrating table, to-and-fro traction machine, cutting saw, racks for finished products and control system. The machine can produce various FRP Pultrusion Profiles only need different molds, the profiles include Square tubes, Rectangulartubes, Round tubes, L Angles, I Beams,C Channels, and Rod fiberglass pultruded profile etc.
FAQ
1. Q: Who are we?A: We are manufacturer, located Hengshui City Hebei Province, China, start from 2016, sell to Eastern Europe(20.00%), Africa(20.00%),Domestic Market(20.00%),South Asia(15.00%),Southeast Asia(15.00%),South America(5.00%),North America(5.00%). Welcome to send your inquiry!2. Q: How about the delivery time?A: Normally, 10-15 days after receiving the deposit to finish the order for a 20' container. Welcome to ask for the detailed delivery time according to your order quantity!3. Q: What's the price of FRP pultrusion machine?A: Depends on the size and quantity, welcome to inquire!4. Q: How can you guarantee the product quality?A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction beforepacking.5. Q: Can you do OEM for me?A: We accept all OEM orders, just contact us and give me your design,we will offer you a reasonable price ASAP.6. Q: What can you buy from us?A: FRP/GRP Pipe & fittings, FRP/GRP tank & tower, FRP grating, FRP pultruded profiles, FRP SMC water tank, FRP polymer electrolytic cell, S/F, F/F double wall underground fuel tank, FRP rebar, FRP pipe filament winding machine & technology, FRP tank filament winding machine & technology, FRP molded grating machine & technology, FRP rebar machine & technology, FRP pultrusion machine, FRP polymer electroytic cell machine & technology, Mannheim Process Potassium Sulphate Making Equipment & technology, FRP cable tray, FRP septic tank, Fiber reinforced plastic rod/core, etc,7. Q: What services can we provide?A: Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;Accepted Payment Currency: USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
