Hot Expanding Machine for Expanding Pipe or Refreshing Used Pipe

Product Description

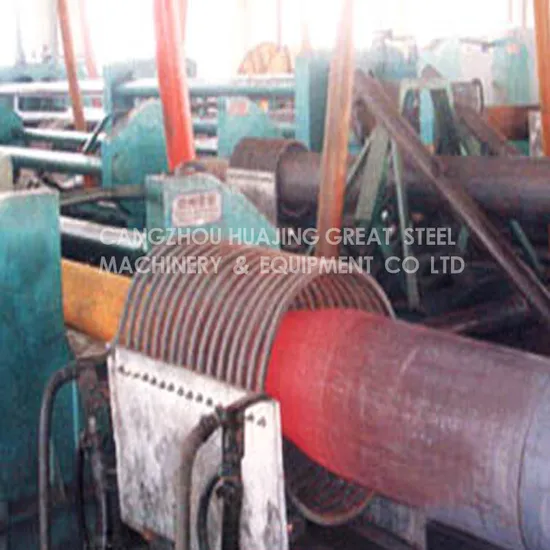

hot pipe expanding machine
Performance
The equipment is a specialized device for petroleum,chemical industry,electric power,oil and gas pipeline
and other fittings ;it was designed and manufactured by our company ;it synthesized many years of
improvement and technical requirements in fittings industry. It mainly chooses seamless and welded pipes
as raw material and makes use of hydraulic pushing-method equipment mating intermediate frequency
heating system to realize the production procedure of hot expanding pipe diameter. The products adapt
carbon and alloy steel pipes expanding from original small-diameter pipes to big-diameter pipes.the
equipment possesses logical design, reliable working,convenient operation,automatically feeding system
for relicving labor intensity;main unit _adapts hydraulic rotation easy to realize the rapid shifting between
stepless speed governing speed -reverse with working process,and can easily adjust thrust.it can run
stably with little noise,the circuit board of intermediate frequency power adapts advanced technology;
starting circuit with constant power digital sweep frequency can run smoothly and reliably with low failure rate.
Major technology parameters

Paramete\ model	HJ-EX-219	HJ-EX-325	HJ-EX-426	HJ-EX-530
Max diameter expanding to	219	325	426	530
Inner diameter of hydro-cylinde(mm)	160	200	220	250
Thrust force of hydro-cylinde(T)	84	130	160	206
Using thrust force(T)	67	104	128	165
Working adfvance speed(mm/min)	2500	1400	1600	1200
Return stroke(mm/min)	5000	3900	3400	3300

Paramete\ model	HJ-II-630	HJ-II-720	HJ-II-820	HJ-II-1020
Max diameter expanding to	630	720	820	1020
Inner diameter of hydro-cylinde(mm)	280	300	320	360
Thrust force of hydro-cylinde(T)	258	296	337	420
Using thrust force(T)	206	232	270	360
Working adfvance speed(mm/min)	1100	1000	950	800
Return stroke(mm/min)	2800	2700	2200	1700

Remarks:
1,the thrust force of hydro-cylinder shall be calculated as two hydro-cylinder;design max pressure is 21Mpa;
using pressure is 0-18Mpa.
2,the data is for reference only.
3.products can be customized according to requirement
FAQ
1. Are you able to make the machine as our requirement?
Yes, we accept customized.
2. Is it possible for customer to inspect machine before shipment ?
Yes,of course ,we welcome customer to our factory inspect machine before shipment .
3. Can the clients visit your factory?
Of course yes, welcome to visit our factory any time.
4. How to ensure the quality of the machine ?
Before shipment ,we will running the machine in our factory ,also the customer can come to our factory
inspect machine ,Our machine guarantee period is 1 year ,within one year any part broken (expect
human factor ) we will offer the parts for free , whole life service offer .
