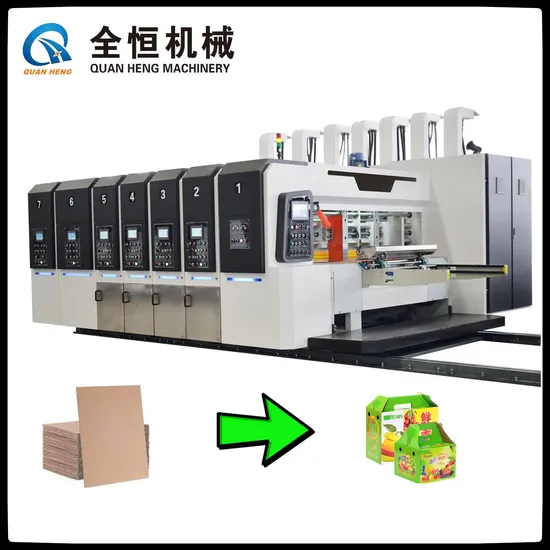

Corrugated Carton Box Flexo Printing Slotting Rotary Die Cutting Stacker Machine
| US$45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QH1228
Printing Page
Single Faced
Printing Color
4 Colors
Anilox Roller
Metal Anilox Roller
Dryer
UV& IR
Type
Ink Jet
Embossing Structure
Rotary Letterpress
Structure
Unit Type
Application
Pre Printed Carton
Automatic Grade
Automatic
Printing Speed
200m/min
Speed
150PCS/Min
Size
1200X2800
Power
30kw
Funcation
Printing on Corrugated Carton Box
Transport Package
Packaging in Container
Specification
4000x3800x2000
Trademark
QH
Origin
China
HS Code
84413090
Production Capacity
100sets/Year
Product Description
Product DescriptionGYKM-II 1400x2800 FULLY AUTOMATIC FLEXO 1-5 COLORS PRINTING SLOTTING DIE CUTTING WITH
VIBRATING STACKING MACHINE
Technical Specification
Main specifications:
| NO | Parameter name | Unit | Specifications |
| 1 | Machine inside width | mm | 2800 |
| 2 | Max speed | pcs/min | 250 |
| 3 | Economic speed | pcs/min | 200 |
| 4 | Max feeder paper size | mm | 1200×2550 |
| 5 | Min paper | mm | 280×700 |
| 6 | Max printing size | mm | 1200×2400 |
| 7 | Interval one paperboard feeder size | mm | 1400×2550 |
| 8 | Color accuracy | mm | +0.5 |
| 9 | Standard plate thickness | mm | 6-7.2 |
| 10 | Thickness of the board | mm | 2--11 |
| 11 | Minimum slotting spacing | mm | 260×100×260×100 |
| 12 | Maximum depth of slotting | mm | 300 |
Printer unit(1-6Colors):
Slotter unit
Rotary Die Cutting Unit
Vibrating stacker unit
Detailed Photos
Company Profile
Certifications Packaging & Shipping
Our Teams
