Sanyu SVC Single Phase Automatic High Performance Voltage Stabilizer

Product Description

Sanyu SVC Single Phase Automatic High Performance Voltage Stabilizer
Product Features
This series of voltage regulators with self-voltage regulation or compensation Surge, has features of small size, light weight, continuously adjustable voltage, output voltage and high precision, wide range of voltage regulation, low loss, no waveform distortion, which is widely used for civilian appliance regulators, industrial equipments, medical devices.
It's the most cost-effective regulated power suply on the current market.
This series of regulated power supply has set up the over-voltage protection, the length of delay time and selective output, overcurrent protection functions.

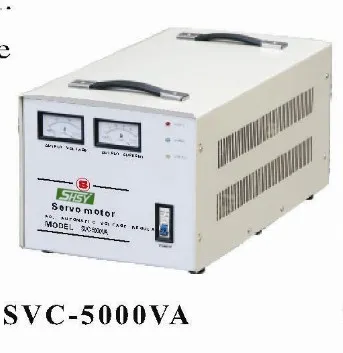

Detailed Images
Product Specification
1. Input voltage 160-250
2. Ultra-low voltage 130-250V
3. Output voltage 220± 3% with 110V output
4. Phase Single-phase
5. Frequency 50-60Hz
6. Adjustment time Less than 0.5s Input voltage change 10%
7. Rated output current 0.5kVA 1kVA 2kVA 3kVA 5kVA 10kVA 15kVA 20kVA
8. 2A 4A 6A 8A 12A 20A 28A 40A
9. Ambient temperature -5 degree to 40 degree
10 Temperature rise Less than 60 degree
11. Relative humidity Less than 90%
12. Waveform distortion No additional distortion
13. Efficiency More than 90%
14. Pressure Meet part standards
15. Size & Weight

Voltage (VA)	Size (mm)	Weight (kg)
500VA	190× 190× 140	5
1000VA	225× 225× 160	8
1500VA	225× 225× 160	9
2000VA	245× 260× 205	12
3000VA	225× 285× 260	15
5000VA	245× 460× 200	25
7000VA	280× 320× 580	40
10000VA	280× 320× 580	40
15000VA	335× 400× 640	45
20000VA	435× 400× 880	45
30000VA	510× 330× 910	90

16.Voltage regulator, automatic voltage regulator, AC voltage-SVC10kVA, SVC15kVA, SVC20kVA, SVC30kVA, SVC40kVA
17. CE, ISO9002, SGS, CCC certificates, etc.
Packaging & Delivery
Packaging Details: EXPORT STANDARD CARTONS or PLYWOOD CASES
Delivery Time: Shipped in 5-7 days after payment
FAQ
Q1. Factory or trade company only? What certifications do you get?
A: We are factory absolutely. And we have CE, ISO9001, SGS, CCC.
Q2. Can I be your sale agent in our market?
A: Why not, welcome. Email me now if you are interested.
Q3. What is your MOQ?
A: The Minimum Order Quantity is 1 set.
Q4. What will your company do for the warranty?
A: All the goods are 100% quality testing before shipping. We'll offer 12 or 18 month warranty.During the
warranty period,if goods have any quality problem without any human factors, we'll send parts for your repair and replace.
Q5. Can you accept OEM orders?
A: Yes, OEM/ODM orders are highly welcome.
Q6. what's the payment term?
A: We accept T/T, L/C, West Union, Cash, etc.
Normally, T/T 30% deposit and 70% balance before shipment or against copy of B/L. 100% for at sight LC.
Q7. What package standard?
A: For small capacity,we packed with carton,but for big capacity,we can make the pallet or use strong wooden case to distinguish and protect the goods.
Q8. why choose us ?
A: 1. Famous brand in china for 10 more years ---- Sanyu
2.Easy operating system ---- Easy but effective software, gentle touch achieves
3. Stable performance ---- best famous compenents ensure the quality all the time
4. Excellent aftersales service ---- 24*7 hours online serive, never leave you alone.
5. Fast delivery ---- cheap & safe delivery, we look after it all the time.
Q9. What is your production capacity?
A: 3000 sets per month, could provide customerlized package upon requests.
Q10. How to contact you?
A: Devilin.Zheng. Welcome to feel free to contact me.
