Bridge Bearing Pad Making Machine

Product Description

36 MONTHS WARRANTY Rubber Platen Press Machinery with Oversea-Service

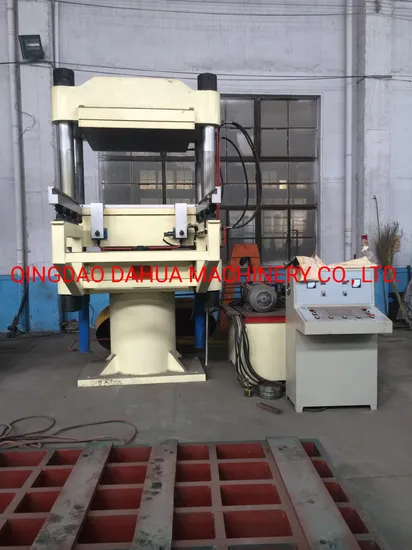

XLB-Q 900X900/4.00MN Vulcanizing press machine
Application:
This 400ton vulcanizing press machine has slabside structure, automatic push-pull mold system. You can produce bridge bearing, building bearing, solid tyre, pump core etc. big rubber or rubber-metal product by this press machine. This machine can install insulated cover to save power, and adding pump at the same time can collect gas during vulcanization.
All the machine we made can correspond with your production process.

Type of Press	Column structure
Total Force	400 Tons
Working table Size	900mm x 900mm x 80mm
Daylight Gap	800 mm
Plate unit pressure	4.9 Mpa
Working layers	1
Ram stroke	800 mm
Closing/Opening speed	>10mm/s / >10 mm/s
System pressure	17 Mpa
Cylinder Bore / Ram Dia	Ф500mm
Cylinder NO.	1
Heating Medium	Steam or oil
Industrial voltage	3 Phases, 380V, 50 HZ
Control method	Siemens PLC
Electricity components	Schneider electrical components.
hydraulic system	Huade valves(Rexroth series) or Yuken valves
Motor power	11kw x 2
Dimension

Main parts instruction: 1.The machine adopts the advanced PLC control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from Schneider France ,which can stabilize machine performance Packing & Shipment:
About Dahua :
Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.
The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements.
"Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!
We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand.
Customer Show:
Hot Sales:
FAQ:
Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements
.
