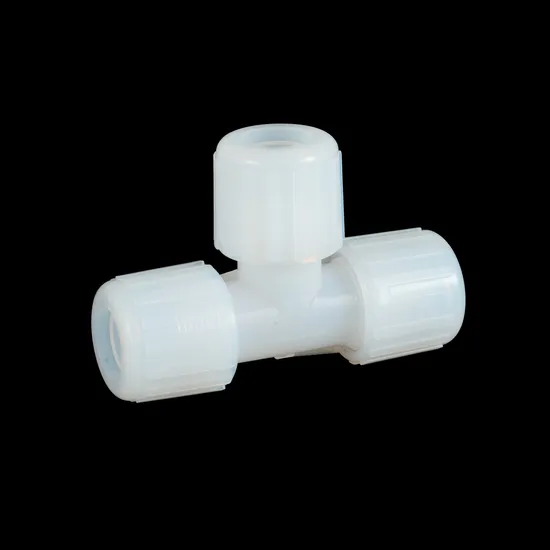

Corrosion Resistance High Quality Horn Tee PTFE PFA Connector

Product Description

Product introduction The PFA series is ideal for any ultra-pure liquid or aggressive chemical solution application. This kind of
The joint has a highly reliable sealed connection with a minimal dead volume. And can be used for lateral load and vibration applications.
The PFA FLare connector can be installed by means of thermal flare.
The PFA nut is standard in the PFA series. As standard.
Detailed Photos Product Description
Main properties of PFA fittingsPFA fittings take benefits of their plasticity, corrosion resistance, wear resistance, and high and low-temperature resistance, which significantly surpass other plastic components. After lathe processing or molding, they are suitable for high-purity semiconductor industries.
Characteristics of PFA fittings:Locking method: Expansion and contraction sealing.Conveying media: Strongly corrosive liquids.Even under thermal cycling, it can maintain high sealing performance.
Product characteristics
△ The main body is made of ultra-pure PFA raw materials, with special alloy precision manufacturing mold and equipment production, with very lowPrecipitation of metal ions, particulate matter, TOC and anions.
△ High reliability sealed connection.
△ Complete specifications, including space saving models, fast delivery. Product Parameters
Application of PFA fittings

Product number	Product name	Product number	Product name
UT4	1/4-inch tee fitting	SU12-12	3/4-inch straight fitting
UT6	3/8-inch tee fitting	SU16-16	1-inch straight fitting
UT8	1/2-inch tee fitting	UE4-4	1/4-inch expansion elbow fitting
UT12	3/4-inch tee fitting	UE6-6	3/8-inch expansion elbow fitting
UT16	1-inch tee fitting	UE8-8	1/2-inch expansion elbow fitting
SU4-4	1/4-inch straight fitting	UE12-12	3/4-inch expansion elbow fitting
SU6-6	3/8-inch straight fitting	UE8-16-16	1-inch expansion elbow fitting
SU8-8	1/2-inch straight fitting	Customizable according to customer requirements

Gauge lattice
△ Wet parts: Imported ultra-pure PFA.
△ Nuts: PFA.
△ Maximum working pressure: 125 PSIG (8.6 bar), see pressure/temperature table.For safety reasons, make sure to use within 1/3 of the rated pressure value.
△ Operating temperature range: 10ºC ~ 130ºC

TUBE SIZE	A (Ø)mm
1/4 "	7.8
3/8 "	11
1/2 "	14
3/4 "	20.3
1"	28.8
1- 1/4"	36
1- 1/2"	45

Applications of PFA fittings include:
Heat exchangers and steam distribution pipesConveying pipelines for various corrosive mediaConveying pipelines for ultra-clean media in industries such as biotechnology, pharmaceuticals, and foodConveying systems for high-purity reagents and electronic chemicalsSemiconductor, liquid crystal panel, photovoltaic, LED, and other equipmentWidely used in chemical corrosion protection.
Company Profile
Fluorway Polymer Materials (Shanghai) Co., Ltd.,is a professional distributor authorized by many domestic and foreign brands, selling products including PTFE, PFA, FEP, THV, PVDF, PFE, FFKM, additives, glass microspheres, ceramic microspheres, boron nitride and other products. Mainly involved in coatings, plastics, rubber, semiconductors, 5G, new energy and many other fields.

Fluorway Polymer Materials (Shanghai) Co., Ltd.To "set trade services, global procurement in one, strive to be China's first-class foreign trade international company" as the goal, to "international pattern, management efficiency, cost fine, team members to achieve stable development, customer relationship to achieve long-term win-win" as the management philosophy, in accordance with the principle of equality and mutual benefit, Continue to expand a variety of trade business, with high quality products, reasonable prices, high-speed efficiency, and strive to meet the various requirements of customers, dedicated to the enthusiastic service for all friends.

FAQ
Frequently Asked Questions
1. Q: How long does the sample take? Is the sample free?
A: Usually 2-5 working days: For our stock products, it is free of charge, but shipping fee is charged. Samples are made according to your requirements, but the sample fee is refundable for bulk orders.
2.Q: How to confirm the customized products?
A: We can customize different sizes according to your requirements, firstly make samples and provide them to you.
3,Q:What is your minimum order quantity?
A: Usually our minimum order quantity is 1000 meters per piece, but if you need different sizes of products with different specifications, our minimum order quantity can be 100 meters per order, with no less than ten pieces of each style and each specification.
4, Q: How to know the price?
A: Price is the most important concern of every customer. If you want to know the price, you need to know the following details: product specifications, size, thickness, diameter, outside diameter, inside diameter, etc. These are the main factors that determine the price. The more you order, the lower the unit price you will get!
5. Q: What is your packaging?
Packing: The products are packed in cartons, there is one tube in a carton, we can do any other packing according to your requirements.
6. Q: What is your delivery time? Where is the shipping port?
A: Our delivery time is usually one month in peak season, 15 working days in low season, and the shipping port is Shanghai.
6. Q: What are your payment terms?
A: For orders less than 3000 dollars, full payment.
If the order is more than 3000 dollars, 50% prepayment and 50% before shipment.
8.Q: After-sales service?
A: We promise that if there is any quality problem different from the description of mass production, we will take the responsibility of the defective goods.
Q:Could you tell me something about your company
A:Fluorway Polymer Materials (Shanghai) Co., Ltd., located in Shanghai, China, is an enterprise situated within the national G60 Science and Technology Innovation Park. We specialize in the production and domestic and international sales of high-performance fluoroplastic semi-finished materials and precision processed components.Additionally, we provide MSDS reports to ensure the safe use of our products and help buyers mitigate any potential chemical incidents during usage and transportation. With over 20 years of experience in this industry, our company boasts a strong team of technical engineers and sales professionals.
