Automatic Grinding Equipment Machine After Welding of Electric Cabinet Panel

Product Description

Product Description
Automatic grinding equipment machine after welding of electric cabinet panel
Used for metal workpieces like panel,box,shell,frame,cabinet after welding. through the automatic grinding equipment, can reduce 80% to 90% of the grinding labor cost, few workers are needed.
Product characteristics
1.quick-clamping tool(optional automatic loading and unloading device),(Optional automatic rollover platform),one time can process five surfaces, including arc surface;
2.the use of elastic dynamic tool head structure,torque output system control,can promote the grinding piece close to the surface of the workpiece, compensation bending/welding accuracy deviation;By setting the torque value and datum level,the height of the solder joint will automatically increase the number of grinding;
3.automatic compensation,the system automatically prompts to replace the grinding wheel;
4.simple operation,instructional programming,automatic generation of processing path,junior high school or above can be operated by simple training;
5.with Internet function,remote monitoring,programming,diagnosis.
Positioner scheme:
The main function of the positioner is to realize the positioning and transposition of the workpiece, and through a program, it can automatically turn over after grinding 5 faces - automatically grinding the sixth face. Improve the flexibility and diversity of production lines, promote automated production, improve production efficiency.

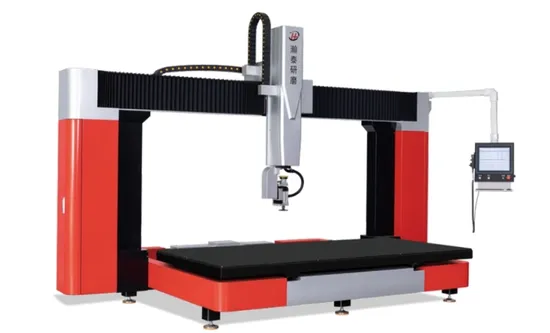

Detailed Photos

Product Parameters

Driving mode	power-driven
Mode of operation	Teach /3D import automatic programming
X/Y/Z processing range /mm	2600*1200*600
Number of control axes/adjustable	5
Spindle speed/r/min	6000~8000
Bed structure	Gantry type
Welding deformation	<2mm
Air pressure	0.5~0.7Mpa
Input power supply	380V/50Hz
Gross power	8.3KW
Length*Width*height /mm	4700*2750*3300
Machine weight /T	3.5

Our Advantages
Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing hardware production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.

After Sales Service
1. Pre-sales service Before signing the contract, the company provides customers with a variety of grinding process solutions, grinding equipment technical consultation, sample sample, equipment selection, technology and price consulting services.
Our company sincerely welcome customers to visit our company site inspection, the company is equipped with special reception personnel, to provide customers with catering, transportation and other convenient conditions.
2. In-sale service According to the contract, our company will safely transport the equipment to the installation location designated by the user within the specified time free of charge, and send technical service engineers to install it on site. When the installation and debugging conditions are basically met, the technical service engineer will install and debug the machine within 1-2 days for users to use, to ensure that the installation and debugging site environment is neat, clean and orderly.
