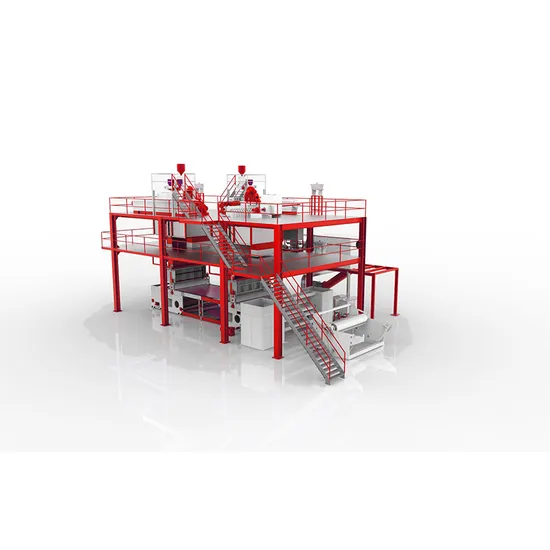

PP Non Woven Production Line Non Woven Fabric Machine

Product Description

Product Description

Model	Working width	Annual Output	Embossing Pattern
AL-1600S	1600mm	5T/Day	Diamond, Oval,Cross,Line
AL-2400S	2400mm	8T/Day	Diamond, Oval,Cross,Line
AL-3200S	3200mm	10T/Day	Diamond, Oval,Cross,Line
AL-4200S	4200mm	12 T/Day	Diamond, Oval,Cross,Line

Main extruder

Stretching device

Extruder is used for melting and extruding PP Chips, master batches and some additives, such as antioxidant, anti-pilling agent and flame retardant agent. Extruder machine consists of chip inlet, automatic temperature control, cooling device and alarming device. Main drive adopts A.C. frequency control. The temperature control device adopts closed circuit temperature meter, solid relay and pt100 platinum resistance.

Stretching device is used for drawing filament( passing from spinneret ) being into longer and thinner. 1.Nominal working width: 1910mm 2:Quenching air volume: 10,000m3/h 3:Pressure: approx. 5000Pa

Installation Instructions

Company Profile
Our factory has many years' experienced engineers and service team to develop and install our "A.L" brand of PP spunbond nonwoven fabric production lines form 1.6M 1.8M 2.4M 3.2M 4M and 4.2M with different models like S,SS,SXS, SSS ,SMS ,SMMS , SMMSS and SSMMSS ect. PET needle punching line includes CARPET Line ,SYNTHETIC PU LEATHER SUBSTRATE line,WASTE FABRIC line, STIFF WADDING line ,THERMBOND OVEN line ,GEOTEXTILE line ,SOFT WADDING line.
Combining the characteristics of PP and PE, the new non-woven equipment is achieved We have professional engineer support, high efficiency sales team and competitive price superiority, andattract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia,Turkey, Russia, USA, Mexico, Brazil, India, Thailand ,Middle east and South Africa.

After Sales Service
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Our location in YIwu,which is near Shanghai (around 300km) and Hangzhou( just 120km). Welcome to visit our factory!!
