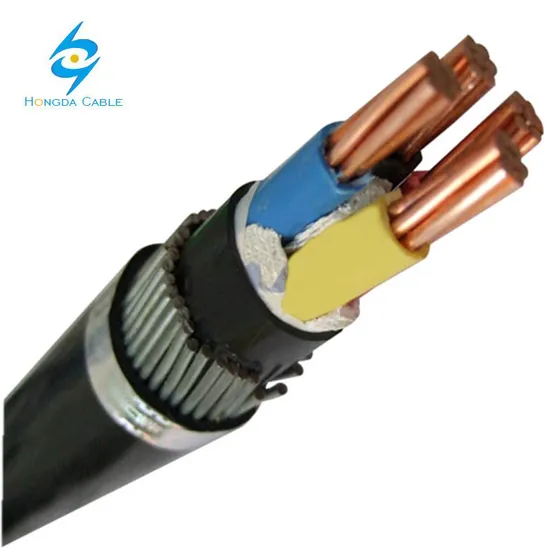

4c16 mm2 Cu/XLPE/PVC/Swa/PVC Copper Steel Wire Armored Cable
| US$0.58-14.35 | 100 Meters (MOQ) |
Basic Info.
Model NO.
YJV32
Current
AC Cable
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC
Model
Yjv32
Brand
Hongda
Cores
1 2 3 4 5
Conductor
Copper
Transport Package
in Drum or in Pallent
Specification
4*16 4*25 4*35 4*50 4*70 4*95 4*120
Trademark
NO
Origin
Henan
HS Code
8544492100
Production Capacity
10000 M Per Day
Product Description
Application for power cableUnderground cable Steel Wire/type Armoured Copper Power cable is used for power transmission and distribution line with voltage rated at 1kV and below.Compared with PVC Insulated Power Cable,xlpe insulated power cable boasts not only characteristic of excellent electricity, mechanism, heat and aging-resistant, environment stress- resistant and chemical corrosionresistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long term working.
Standard of Underground cable Steel Wire/type Armoured Copper Power cable
International: IEC 60502-2, IEC 60228 such as BS,DIN and ICEA upon request
Specification for Underground Cable Steel Wire/type Armoured Copper Power cable
| Type | Cu or Al /XLPE/CTS or CWS/PVC, Cu /XLPE/CTS /PVC/SSWA/PVC | |
| Voltage | 0.6/1kV,1.8/3kV, 1.9/3.3kV,6/10kV, 6.35/11kV, 8.7/10kV, 8.7/15kV, 12/20kV, 12.7/22kV, 18/30kV, 19/33kV,26/35kV | |
| Cores | 1C, 2C,3C,3C+E,4C,5C,3C+2E,4C+E | |
| Range of Nominal cross section | 2.5 mm2 - 630 mm2 | |
| Application | Underground cable steel wire/tyoe armored copper power cable is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6/6kV~26/35kV. For laying indoors, in tunnel, cable trench, well or direct in ground. | |
| Standard | IEC 60502, BS 6622, GB/T12706 | |
| Constructions | Conductor: | Copper or Aluminium Compacted |
| Insulation: | XLPE | |
| Metallic screen: | Copper tape or Copper wire | |
| Armour: | Steel Wire Armour or Steel Tape Armour | |
| Sheath: | PVC, PE or LSZH | |
| Max. Operating Temperature | 90 ºC | |
