New Directional Dipole FM Antenna for Radio Transmitting

Product Description

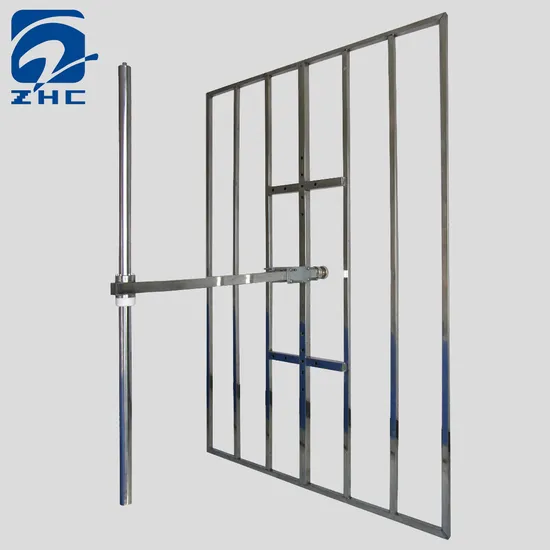

Professional Directional Dipole Antenna for Radio Transmitting

Electrical Data:
Frequency range:	87.5~108MHz	Impedance:	50ohm
Connectors:	L27 female or 7/8"	Max Power:	1KW(7/16'or 7/8')-3KW(7/8')
VSWR:	1KW(7/16'or 7/8')-3KW(7/8')	Polarization:	Horizontal or Vertical
Gain: 4.5dB(refered to half-wave dipole)
Half power beam width E plane 320,H plane 580
Lightning protection All metal parts DC grounded

Mechanical Data:
Dimensions:	2000mm*1400mm*1075mm
Weight:	32kg ref.stainless steel
Wind surface:	0.13m2 (side); 0.56m2 (front)
Wind load:	108kg(front-wind speed at 160km/h)
Maxwind velocity:	200km/h
Materials:	Reflector:hotdip.galvanized Dipole:stainless steel Internal parts:passivated aluminium Radome:fiberglass (Option)
Mounting:	With special pipe clamps 50~110mm dia
