Kraft Paper Recycling Recycled Paper Making Machine Production Line Price

Product Description

Kraft Paper Recycling Recycled Paper Making Machine Production Line Price
Technical parameter:
Raw material: Waste paper
Output paper: Corrugated paper, carton board paper, kraft paper
Paper weight: 150-450gsm
Width of paper: 3200mm
Cylinder mould width: 3750mm
Capacity: 50T/D
Rail space: 4300mm
Work speed: 30-90m/min
Drive way: Alternating current frequency conversion adjustable speed, section drive

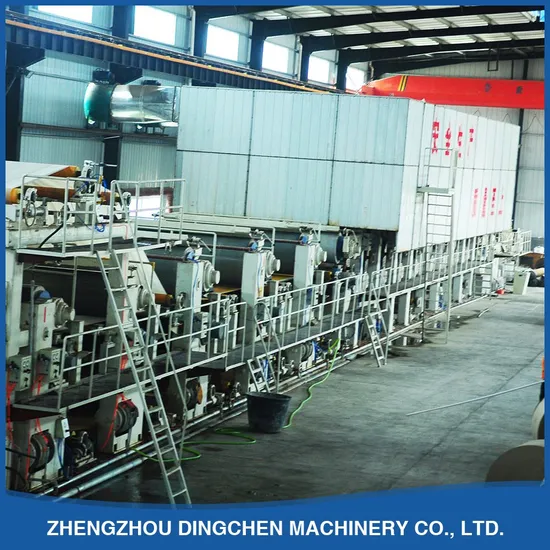

Main structures:
Cylinder part: Φ 1500mm× 3750mm stainless stell of roll chip cylinder mould 4sets; Φ 500mm× 3750mm couch roll 5sets; Reverse roll 1 set; The material is cladding rubber by stainless steel tube, the rubber thickness is 25mm, rubber Share hardness is 38± 2.
Pre-pressure part: Φ 550mm× 3750mm natural granite stone top roller 1 set, down roller material is seamless steel tube with surface cladding rubber, rubber thickness is 25mm, rubber Share hardness is 90± 2. Pneumatic pressure device. Square frame with cast iron.
Φ 800mm× 3750mm
2 main pressure part: Φ 800mm× 3750mm natural granite stone top roller 2 sets. Φ 750mm× 3750mm down roller 2 sets. Material is seamless steel tube with surface cladding rubber, rubber thickness is 25mm, rubber Share hardness is 95± 2. All equiptted with Pneumatic pressure device 2 groups
Dryer section: 16 sets of Φ 1500mm× 3750mm dryers, 10+6 arrangement.
Widing section: Φ 1100mm× 3750mm 3200mm cylinder roll paper machine 1 set.

No.	equipment	Quanty (set/sets)
1	3200mm multi-cylinder and multi-mesh paper machine	1
2	dryer can exhaust hood	2
3	axial flow ventilator	2
4	Vacuum pump	1
5	suction box	3
6	3200mm winding machine	1
7	3200mm rewinding machine	1
8	frequency conversion controlling cabinet	1

Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
