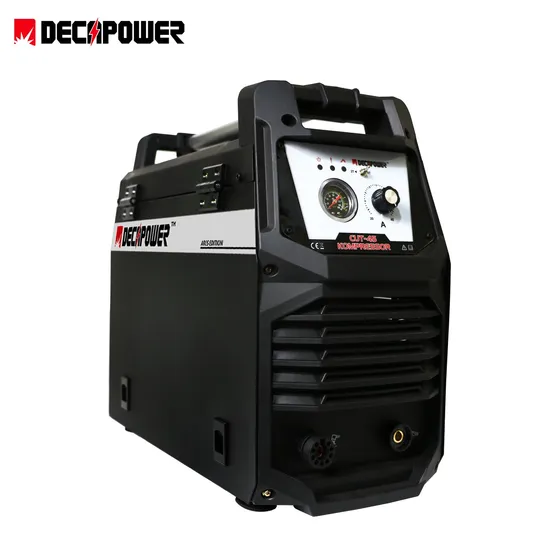

Decapower 40AMP with Compressor Inbuilt or Input Air Pressure 2-in-1 Plasma Cutting Machine

Product Description

SEARCHING FOR A SMALL PORTABLE AIR PLASMA CUTTING MACHINE ? The DECAPOWER PILOT CUT 45KZ 2IN1 is an inverter-based Plasma cutting machine produced using the latest in IGBT technology. This machine is reliable, robust and stacked with features that you can expect from a quality Plasma Cutter. The PILOT CUT 45KZ 2IN1 produces a high temperature plasma stream providing effortless cutting of all electrically conductive materials including steel, cast Iron, stainless steel, copper, aluminium brass etc . ThePILOT CUT 45KZ 2IN1 is equipped with a high quality S45 Plasma torch with Euro connection,developed specifically to enhance and improve the cut quality of the CUT machine. Connection of the S45 Plasma torch provides effortless starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips.
The PILOT CUT 45KZ 2IN1is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services.
The PILOT CUT 45KZ 2IN1 is packaged with a tough S45 Plasma torch, earth lead and air regulator. The PILOT CUT 45KZ 2IN1 gives you the best of both worlds great portability, with the power to get the job done.
Built to our specification and manufactured in compliance to AS/NZS 60974-1

A CUT ABOVE THE REST: - PILOT CUT 45KZ 2IN1 is a single phase inverter Plasma Cutter capable of clean cutting 16mm mild steel and evering 20mm mild steel.
- The machine is light weight and extremely portable and is suited to light to medium industrial work.
- This powerful machine is perfect for site work as well as panel and fabrication work.
- The machine comes standard with 3 metre torch making it extremely versatile for making cuts away from the machine itself.
- The torch can be used in either 2T or 4T modes making it more comfortable for longer cuts.
- Optional extras for the machine include an air filter unit to maintain clean and dry air as well as a circle cutting kit with roller guide.

Model#	PILOT CUT 45KZ 2IN1	PILOT CUT 65KZ 2IN1
Type	IGBT	IGBT
Rated Input Voltage (V)	220V	220V
Rated input frequency (Hz)	50/60HZ	50/60ZH
Rated input Power (KVA)	4.8KW	7.8KW
Non-load Voltage (V)	60V	60V
Air Flow Pressure	5.0bar @ externer gas 2.5bar @ inbuilt compressor	5.0bar @ externer gas 2.5bar @ inbuilt compressor
Rated Duty cycle (%)	60%	60%
Efficiency (%)	85%	85%
Class of Insulation	H	H
Shell protection grade	IP21S	IP21S
Output curent range (A)	40A	60A/40A
Max. Cutting Thickness	16mm-20mm@ externer gas 12-14mm@inbuilt compressor	24mm@ externer gas 20-22mm@inbuilt compressor
N.W./G.W. (kg)	20KG/24KG	20KG/24KG
Machine Size (LxWxH mm)	540*280*370mm	540*280*370mm
Packaging	BROWN CARTON BOX	BROWN CARTON BOX
Dimnsions (WXDXH mm)	640*320*480mm	640*320*480mm
Standard Accessories included:	1pc x S45 CUT TORCH with 3m cable 1pc x Eartch Clamp 200A with 2m cable 1pcx 3m gas hose 1pcx Air filter
