2025 Bcmc Quartz Countertop Stone Processing Center Machine 3D CNC Drilling Cutting Carving Milling Polishing

Product Description

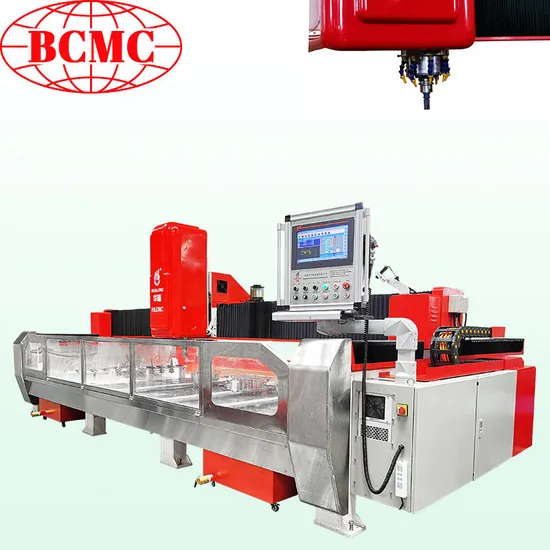

BCMC machinery BCPC-3319 is a kind of multifunctional manufacturing center. This machine is designed for stone processing like cutting, polishing, drilling, sink cutting, profile cutting and so on. Good for processing the kitchen counter top, bath countertop, cabinet countertop, bar counter, table, windowsill, door sets etc. For complicated precise art work relief engraving, stone background wall relief, european style edge processing is also available.
Main Features: Pre-install CAD/CAM software. It can realize automatic continuous one-button calibration, milling, engraving, honing and polishing. Bilateral tools-store with 20 stations for automatically tool change. Crossbeam and carling adopt with Taiwan Hiwin linear guide which ensure high precision of cutting and long lifespan. X/Y axis equipped with dust collector which can keep machine clean and prolong using lifetime. Yaskawa 3 phrase servo motor. High speed and high efficiency. Fine cutting without serrated ripple, smooth bottom plane and clear outline. Equipped with USB interface for operator to load and download program files conveniently. High speed and low noise. High efficiency and low processing cost.
Parameters:

TECHNICAL DATA
Model Number		HLCNC-3015	HLCNC-3319	HLCNC-1308
Stroke (X-axis)	mm	3040	3500	1340
Stroke (Y-axis)	mm	1540	1950	840
Stroke (Z-axis)	mm	320	320	320
Power of motor	kw	7.5	7.5	7.5
Rotating speed	rpm	0-8000	0-8000	0-24000
Tool holder model	BT	40	40	40
Tool-store position	nr	12	20	11
Workbench dimension	mm	3000x1500	3300x1900	1300x800
Gross Weight	kg	4000	5000	2500
Demension (L x W x H)	cm		553x320x230

Detailed Information For Spare Parts:
Control Console
Interactive interface control system. Mounted on a swing arm and equiped with a touch-screen colour monitor. Friendly user interface and mature application software make daily management easy.
Linear Guide
Top quality use on crossbeam and carling for durable and good performance.
Electrical Component
Using the wold famous brand electrical component such as Siemens, Schnider. Ensure the stable working of the machine.
Self Lubrication System
Automatic lubricate and timely control the feed of the lubricate oil.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Tool Change System
Tool-store with 20 positions, each side 10 positions. Exchange and pick up tool automatically.
Hand-Wheel
Hand-wheel Wired to the control console to duplicate the axis mangement, controlling the movement speed and position directly. It allows the operator to be close to the piece to be machined thus controlling directly some delicately work.
Vacuum Pump
The machine comes with a 7.5kw vacuum pump for sucking the stone, it is powerful enough for sucking the stone on the table.
Engraving module is optional for dual functions:

Application: * 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades
