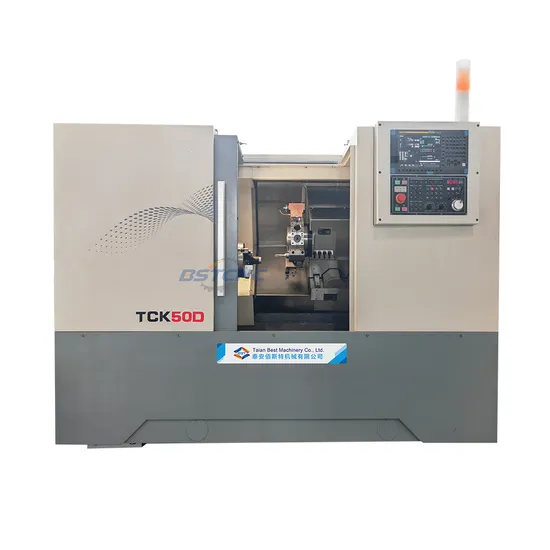

Tck50d Hard Guide Ways High Precision CNC Turning Center Machine
| US$28,000.00-35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
TCK50D
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
System
Numerical Control
CNC
Processing Precision
0.008
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Product Name
Hard Guide Ways High Precision CNC Turning Center
Model
Tck50d
Spindle Bore
65mm
Bar Through Diameter
50mm
Spindle Form
A2-6
Motor
11/15kw
Spindle Speed
50-4500rpm
Boring Tool Holder
40/32/25/20
Outer Diameter Tool Holder
20X20mm
Chuck Size
8′′
Turret
8/10 Hydraulic or Servo
Tailstock Sleeve Taper
Mt5
X Travel
200mm
Z Travel
550mm
Tailstock Travel
450mm
Transport Package
Wooden Case
Specification
14CBM
Trademark
BST
Origin
China
HS Code
8458110090
Production Capacity
2000/Year
Packaging & Delivery
Package Size
250.00cm * 200.00cm * 215.00cm
Package Gross Weight
3750.000kg
Product Description
Product Description
TCK50D series CNC lathe is a high-quality product designed and produced by our company to meet market development needs. The spindle of this machine tool has a C-axis function (which can be indexed at any angle), and multiple functions such as turning, milling, drilling, and tapping can be completed in one clamping process, avoiding errors caused by secondary clamping. It is very suitable for processing shaft and disc parts with many processes such as smooth holes, threaded holes, key slot, etc.
TCK50D SPECIFICATION AND PARAMETER:
| Item | Unit | Specification | Remark | |
| Max.swing diameter over bed | mm | 500 | ||
| Max.processing length | mm | 500 | ||
| Max. processing diameter | mm | 200 | Horizontal 12-station turret | |
| Standard processing diameter | mm | 180 | ||
| Spindle head form | A2-6 | Spindle unit | ||
| Spindle bore | mm | 65 | ||
| Bar through spindle bore | mm | 50 | ||
| Main spindle | Spindle speed range | r/min | 50~4500 | |
| Main motor power | kW | 11/15 | ||
| X axis rapid feed | m/min | 30 | ||
| Z axis rapid feed | m/min | 30 | ||
| X axis travel | mm | 200 | ||
| Z axis travel | mm | 550 | ||
| Tailstock travel | mm | 450 | ||
| Tailstock sleeve travel | mm | 100 | ||
| Tailstock sleeve taper | MT5 | |||
| Cutting Tool size | Outer circle cutting tool | mm | 20×20 | |
| Boring tool diameter | mm | Ф40/Ф32/Ф25/Ф20 | ||
| ATC choose the nearest tool | Yes | |||
| Weight | kg | 3600 | ||
| Machine size(LxWxH) | mm | 2300×1800×1950 | ||
Standard configuration: Optional configuration:
-GSK988TA control system; -Siemens808D,Fanuc0i-TF,Syntec22TA,Mitsubishi;
-3 jaws 8''hydraulic chuck with hydraulic station; -3-jaws 10'' hydraulic chuck;
-12 station BMT40/BMT45 Power turret; -Chip conveyor ;
-Hydraulic tailstock; -Auto servo bar feeder and parts catcher;
