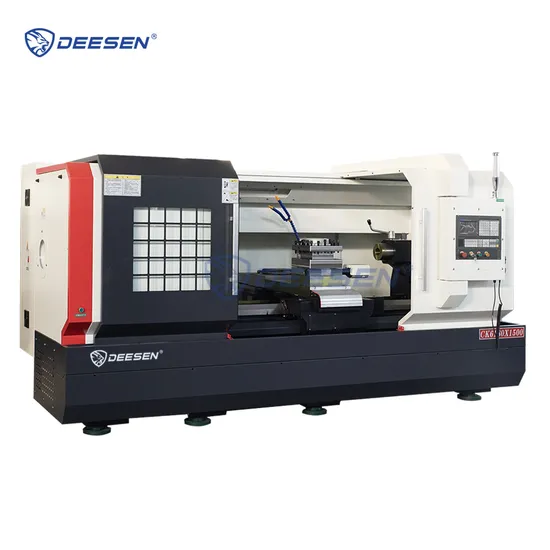

New Design Features Ck6186 Specialized CNC Lathe Machine for Repairing Car Alloy Wheel

Product Description

New Design Features CK6186 specialized cnc lathe machine for repairing car alloy wheel
Product Description
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
Product application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
The main performance characteristics:
CNC lathe features
1. A high strength ,widening the carriage ,suitable for heavy cutting
2. Four position electric turret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck
Product Parameters
Product main technical specifications:

SPECIFICATIONS	Units	CAK6180 CAK6180B CAK6180C
Swing over bed	mm	800
Swing over cross slide	mm	520
Distance between centers	mm	750/1000/1500/2000/3000
Spindle bore	mm	52 (82 for B) (105 for C)
Spindle bore taper	-	MT6 (90 1:20 for B) (113 1:20 for C)
Spindle nose type	-	C6 (D8 for B) (D8 for C)
Spindle speed steps	-	Manual 3 steps
Spindle speed range	rpm	21-150,66-500,162-1500
Turret/tool post	-	Electric 4 position
Tool size	mm	25*25
X axis travel	mm	400
Z axis travel	mm	500/750/1250/1750/2750
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	75
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	150
Main motor power	kw	11
Coolant motor power	kw	0.125
Weight for 750	kg	2750
Weight for 1000	kg	2850
Weight for 1500	kg	2950
Weight for 2000	kg	3450
Weight for 3000	kg	4250
Dimension for 750	mm	2550*1750*1900
Dimension for 1000	mm	2750*1750*1900
Dimension for 1500	mm	3250*1750*1900
Dimension for 2000	mm	3700*1750*1900
Dimension for 3000	mm	4710*1750*1900

Detailed Photos
PRECISION CHUCK
Standard with Manual chuck,Optional:hydraulic chuck or pneumatic chuck.
TOOL POST/TURRET
Standard with 4 staion electrictool
post ,6/8 station electric turret is optional.
QUENCHING MACHINE GUIDE
Super audio quenching guide rail harder;500mm bed width.

SPINDLE
52/82/103 spindle hole,manual 3gears speed ,suitable for power cutting;
independent spindle is optional
TAILSTOCK
Standard with manual tailstock, Optional:Hydraulic or pneumatic type tailstock.
CNC CONTROLSYSTEM
Standard :Fanuc ,
Optional :Siemens,GSK,Syntec, Mitsubishi and others.

Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise. In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing. In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%. The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing. In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services. Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
