FUDA Simple Operation Automated Two Ports Fiber Puffer Jacket Filling Machine
| US$15,999.00-21,999.00 | 1 set (MOQ) |
Basic Info.
Model NO.
2 Ports with 8 Weighing Hoppers
Feature
Automatic Weighing, Charging & Suction, Quantitative Down Charging, Compact Size
Filling Valve Head
Dual Heads
Product Name
Fiber Puffer Jacket Filling Machine
Display Device
10" Touch Screen
Weighing Cycles
8 Weighing Units
Filling Range
0.2-35grams
Show Weight Accuracy
0.01gram
Nozzles Size
19mm,25mm,32mm
Filling Materials
Duck Down, Goose Down
Stuffing Materials
Ball Fiber, Short Fiber
Application
Down Jacket, Winter Clothes
Storage Volume
10-15Kg
Daily Capacity
800 plus down jackets
Power
1Phase AC220V 3Kw
N.W(Kgs)
750kg
G.W(Kgs)
950kg
Dimension(L*W*H)
3000*3500*2000mm
Transport Package
Wooden Case
Specification
2 Ports 8 Scales
Trademark
FUDA
Origin
China
HS Code
8479899990
Production Capacity
100sets/Month
Packaging & Delivery
Package Size
225.00cm * 116.00cm * 226.00cm
Package Gross Weight
950.000kg
Product Description
Product Overview8T6D Automatic Goose Down Filling Machine with 2 Ports 8 Scales. the goose-down filling process of the quality down jacket was made by FUDA, each grid-filling range is around 0.2-35 grams, the average error is 0.1-0.2 grams, and the average daily capacity is around 600-800 jackets. the 2 Heads 8 Scales automatic filling machine is suitable for a 100-150 person garment factory that focuses on the quality garment process. Product Description
Product Advantages
| High precision | The dynamic error accuracy is ±2%. |
| Control system - Compiled PLC | Quickly, the communication speed rate: 0.4ms. |
| Touch screen - HD HMI | Easy to learn and operate, Multi-language, sensitive touch. |
| Feeding Material - accuracy | the error accuracy is controllable. |
| Returning Material - Quickly | The one-key operation is to empty the remaining material in all scales. |
| Dedusting recycling - Clean | Dustless working environment, reducing raw material wastage. |
| Gear motor - low noise | Low noise, high torque, long life, and easy maintenance. |
| Appearance - The Beauty of Simplicity | Compact design, clean white, technology blue. |
| Model NO. | H8T6D |
| Product Name | Automatic Goose Down Filling Machine |
| Filling Ports | Double-Heads |
| Filling Range | 0.2-35g |
| Display Accuracy | 0.01g |
| Nozzle Size | 19mm/25mm with air return, 32mm for duvet |
| Storage Volume | 10-15Kg |
| Filling Materials | Duck Down, Goose Down, Polyester Fiber, Ball Fiber |
| Application | Down Jacket, Down Pants, Down Duvets |
| Daily Capacity | 600 plus down jackets |
| Power Supply | 1Ph AC220v 3.0Kw |
| Air Supply | 0.6-0.8Mpa, 7.5Kw |
| Display Device | 10" Touch Panel |
| Control System | PLC with 8 Weighing Units |
| Footprint | 2.5*3.5*2.0m(L*W*H) |
| Net Weight | 750Kg |
| Gross Weight | 950Kg |
| Transport Package | Wooden Case |
| Specification | 2 Ports 8 Scales |
| Trademark | FUDA |
| Origin | Shanghai |

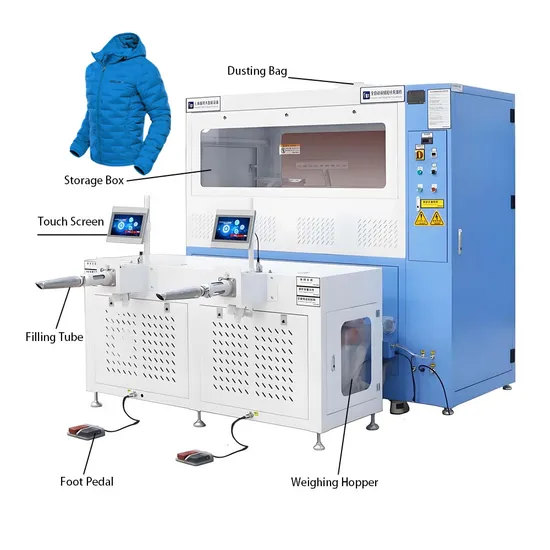

Detailed Photos
