High Efficiency Multifunctional China Manufacture Mobile Concrete Batching Plant Yhzs60

Product Description

Product Description

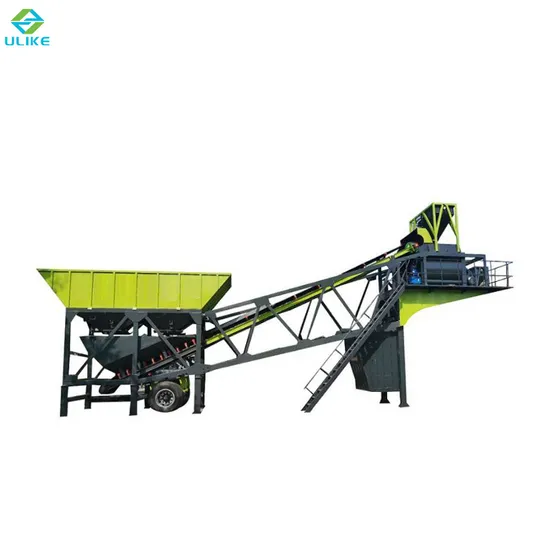

High Efficiency Multifunctional China Manufacture Mobile Concrete Batching Plant YHZS60
Mobile concrete mixing plants main features are as follows:
Modular structure, modules, installation, removal is very convenient. Mixers and aggregate increase JS500 twin shaft compulsory concrete mixer, mixing good quality, high efficiency. Aggregate batching PLD800 concrete batching machine, precise measurement, high production efficiency. Powder material electronic balance measurement, high precision batching. Water scale measurement, high precision batching.
Our mobile concrete batching plant advantages
Phase indicator warning system

After you connect the power supply, if the fire wire is incorrectly connected, system will active the alarm.
Water level indicator
We have 2 water tank, one for feeding the water, one for feeding the concrete mixer. By doing this will reduce the timing for water feeding from ground.
Product Parameters
This series of mobile concrete mixing plant integrates mobility mixing,
environmental protection,energy conservation,and foundation free functions,making
easy to operate time and labor saving, and economicaand practical.
Equipped with a fully automatic control system, with low requirements for operators

Model		YBS-30	YBS-40	YBS-60	YBS-90	YBS-120
Theoretical Productivity		30m³/h	40m³/h	60m³/h	90m³/h	120m³/h
Mixer		JS500	JS750	JS1000	JS1500	JS2000
Aggregate Bin Volume		2x6m³	2x6m³	2x10m³	2x10m³	4x10m³
Measuring range	Aggregate	1000Kg±2%	1000Kg±2%	2000Kg±2%	3000Kg±2%	4000Kg±2%
	Powder	300Kg±1%	300Kg±1%	400Kg±1%	800Kg±1%	1200Kg±1%
	Water	200Kg±1%	300Kg±1%	300Kg±1%	400Kg±1%	600Kg±1%
	Admixture	50Kg±1%	50Kg±1%	50Kg±1%	50Kg±1%	60Kg±1%
control system		Fully Automatic Computer	Fully Automatic Computer	Fully Automatic Computer	Fully Automatic Computer	Fully Automatic Computer
Total capacity		35kw	45kw	55kw	80kw	110kw
Dragging speed per hour		≤40km/h	≤40km/h	≤40km/h	≤40km/h	≤40km/h

Model		YHZS25	YHZS35	YHZS60	YHZS75	YHZS120
Theoritical productivity		25	35	60	75	120
Discharge hight		3800	3800	3800	3800	3800
Mixer model		JS500	JS750	JS1000	JS1500	JS2000
Batching machine		2*9M3	2*9M3	2*9M3	2*13M3	2*13M3
Weighing System Accuracy	Aggregate Range	1000KG ±2%	1000KG ±2%	1000KG ±2%	3000KG ±2%	3000KG ±2%
	Cement Range	500kg ±1%	500kg ±2%	700kg ±3%	700kg ±4%	700kg ±1%
	Water Range	300kg ±1%	300kg ±1%	400kg ±1%	400kg ±1%	400kg ±1%
	Additive Range	30kg ±1%	30kg ±1%	30kg ±1%	50kg ±1%	50kg ±1%
Control system		Automatic	Automatic	Automatic	Automatic	Automatic
Max Towing Speed		≤50km/h	≤50km/h	≤50km/h	≤50km/h	≤50km/h
Max Aggregate Size		≤80mm	≤80mm	≤80mm	≤80mm	≤80mm
Total Power		55kw	70kw	85kw	110kw	160kw
Total Weight		19300kg	21000kg	23500kg	32000kg	51000kg
Optional Parts		Cement silo, screw conveyor, crusher

Detailed Photos
Company Profile
Founded in 2006, HENAN ULIKE INDUSTRY Co., Ltd. is a top package equipment solution provider in China, especially for Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery, parts and so on.We Ulike industry are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule. With over Fifteen years' experience in the field of Commercial Vehicle, Engineering Machinery, construction machinery, agricultural machinery and accompanying to fulfill strictly ISO 9001: 2008 standard, we had established and have been consistently keeping good business relationship with many general contractors, civil engineering firms and construction companies throughout the world.We Ulike industry participated as package equipment provider previously include airport projects in Africa, power plant projects in Middle East, dredging projects in South America, highway projects in Oceania, rural and municipal road projects in Southeast Asia, and we are still achieving more and more projects at present. To provide reliable products with quick delivery time, to make prompt reaction for spare parts and after-sales services, to visit the users field regularly for local training and maintenance, Ulike industry has been often praised by our customers and has taken great reputation as a trustworthy project partner. Ulike Inductry believe in combining our own achievement together with our customer benefits. Open communication, effective planning and elaborative preparation always commit us to execute and deliver our promises for our customers all over the world.
After Sales Service
We guarantee that the moment the vehicle reaches you, our staft reaches you to ensure 24 hours' service.Normally there will be 2-4 service engineers with the client.We have set up complete spare parts centers to satisfy the clientsand guarantee spare parts supply.
Packaging & Shipping
Packing and Shipping 01 CONTAINER: Put the vehicles into container, Maybe need disassemble, cheapest freight and fast shipping. 02 FLAT RACK: Often used to ship medium equipment,max load-bearing is 35tons. 03 BULK CARGO SHIP: Which is better for bigger equipment,no need disassemble. 04 RO - RO :The machine is driven directly into the ship and does not need to be disassembled. FAQ
1. How many days it need to deliver farm tractor?
We have more than 15 years experience to produce farm tractor and implements,as usual,we only need 15- 30 days to finsh it.
2. Why should I choose your farm tractor?
We are a professional manufacturer of agricultural machinery for more than 15 years,we attended many national projects and the customers are satisfied with our quality.
3. What are your payment terms?
T/T, L/C, Western Union, Moneygram, Paypal or other.
4. Do you have CE and ISO9001 certification?
Yes,all of our product have passed CE and ISO9001 certification.
5. How long is your product warranty?
Our warranty period is one year.
