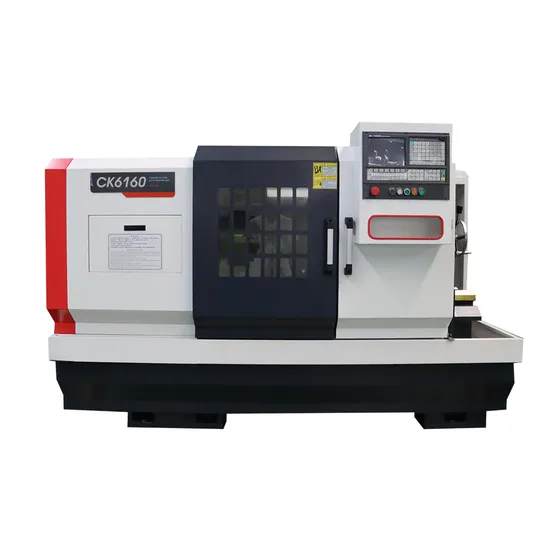

High Performance 0.01mm Precision Automatically Process Ck6160 Mini CNC Lathe Machine
Basic Info.
Model NO.
CK6160
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max. Swing Dia. Over Bed
600mm
Max. Swing Dia. Over Slide
395mm
Maximum Turning Diameter
600mm
Max. Work Piece Length
1000/1500/2000mm
Maximum Turning Length
850mm
Spindle Nose
A2-8/A2-11
Spindle Speed
150-1800/150-800r/Min
Spindle Motor Power
7.5/11kw
Chuck Size
250/320/380mm
X Axis Rapid Traverse
6m/Min
Z Axis Rapid Traverse
8m/Min
X Axis Servo Motor Torque
5/7.5n.M
Z Axit Serve Motor Torque
7.5/10/15n.M
X Axis Travel
325mm
Z Axis Travel
1000/1500/2000mm
Transport Package
Wood Package/Wood Frame
Specification
2800kg
Trademark
Lunyee
Origin
China
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
265.00cm * 170.00cm * 182.00cm
Package Gross Weight
2800.000kg
Product Description
High Performance 0.01mm Precision Automatically Process Ck6160 Mini CNC Lathe MachineDetailed Photos
Product Parameters
| Specifications | Unit | CK6160 |
| Max.swing dia.over bed | mm | 600 |
| Max.swing dia.over slide | mm | 395 |
| Maximum turning dameter (disc) | mm | 600 |
| Max.work piece length | mm | 1000/1500/2000 |
| Maximum turning length | mm | 850/1350/1850 |
| Spindle nose | mm | A2-8/A2-11 |
| spindle bore | Ф/mm | 82/130 |
| Spindle taper | Ф/mm | Metric 90/Metric 140 |
| Spindle speed | r/min | 150-1800/150-800 |
| Spindle type | Stepless speed regulation | |
| Spindle motor power | KW | 7.5/11 |
| Chuck type | Manual chuck | |
| Chuck size | mm | 250/320/380 |
| X axis rapid traverse | m/min | 6 |
| Z axis rapid traverse | m/min | 8 |
| X axis servo motor torque | N.m | 5/7.5 |
| Z axit serve motor torque | N.m | 7.5/10/15 |
| X axis travel | mm | 325 |
| Z axis travel | mm | 1000/1500/2000 |
| Guide way type | hard rail | |
| Capacity of tool post | 4 | |
| Tool shank size | mmxmm | 25x25 |
| Tail stock quill dia | Ф/mm | 75 |
| Tail stock quill travel | mm | 150 |
| Tail oock quill taper | MT5# | |
| Total rated power | KW | 11/12/13 |
| Total rated current | A | 23/26/29 |
| Net weight | kg | 2800/3200/3400 |
| Mactine dimension(L*W*H) | mm | 2650/3250/3750x1700x1820 |
Applications
Product Feature
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are the manufacturer for 15 years in China.
Q:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further cooperation.
Q: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery, the quality can be fully guaranteed.
Q:Do you accept product customization?
A:Yes, we will try our best to meet your requirements.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted, Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Q: Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
If you have another question, please feel free to contact us.
