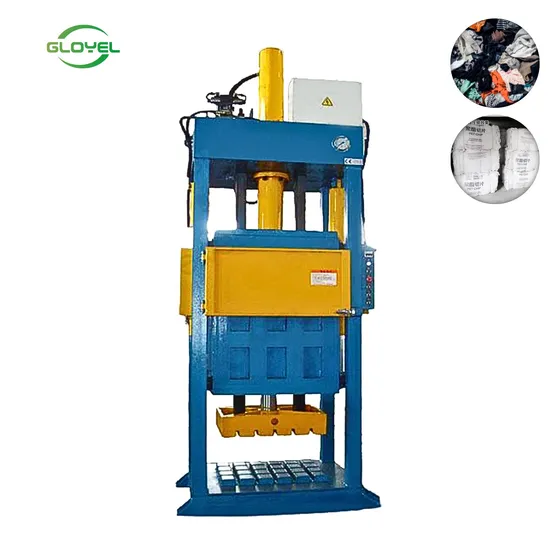

Use Clothes Compression Baler Wasted Wool Fiber Textiles Baling Machine

Product Description

Use Clothes Compression Baler Wasted Wool Fiber Textiles Baling Machine
Product Description

Vertical structure with hydraulically lifting chamber designed for convenient bale tying and enhanced efficiency. Electrical button control brings an easy and safe operation while it offers advantages for packing material into the"#"shape. Specially engineered hydraulic system ensures sustainability and reliability.Applications including compression of clothes,wool,fiber, rags, and other textiles Product Parameters

Model	GY30LT	GY50LT	GY60LT	GY80LT	GY120LT	GY150LT
Hydraulic Power(Ton)	30	50	60	80	120	150
Bale Size(L*W*H) mm	700*400(350-700)	760*520(400-800)	1000*700*(400-800)	1100*800(400-900)	1100*800*(500-1250)	1100*1000*(700-1450)
Feed Opening Size(L*W)mm	700-400	760*460	1000*460	1100*460	1100*600	1100*700
Chamber Size(L*W*H) mm	700*400*1250	760*520*1250	1000*700*1250	1100"800*1250	1100*800*1650	1100*1000*1950
Bale Weight(KG)	40-60	80-120	150-200	200-300	350-550	450-600
Voltage(Customizable)(V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50
Power(KW/HP)	7.5/10	11/15	15/20	18.5/25	22/30	30/40
Machine Size(L*W*H) mm	1200*840*3780	1400*850*3780	1750*1270*3780	18501370*3800	1850*1400*4680	1900*1600*5250
Machine Weight(KG)	1900	2300	2800	3500	4200	5800

The above parameters can be customized according to customer's requirement
Other Types
Vertical Double-cylinder-Baling Machine
Product Description
The double- cylinder balers are designed for a variety of applications including waste paper,soft or rigid plastic,and other materials. It is widely used in numerous recycling industries.
The hydraulic transmission double-cylinder delivers powerful compression force. The centralized interface button control system and upper hydraulic system design,allow saving valuable floor space and ease of operation. The automatic out-bale feature with an inter locking system on the material input area ensures improved safety and reliability. Unique design to deliver well-balanced compression force,with a special device installed in the feeding chamber to prevent material from rebounding.
Technical Parameters

Model	GYA1070T40	GYA1070T60	GYA1075T80	GYA1075T100	GYA1075T150
Hydraulic Power(Ton)	40	60	80	100	150
Bale Size(L*W*H)mm	1100*700*(500-900)	1100*700*(500-900)	1100*750*(500-900)	1100*750*(500-900)	1100*750*(500-1000)
Feed Opening Size(L*H)mm	1100*500	1100*500	1100*500	1100*500	1100*500
Chamber Size(L*W*H)mm	1100*700*1450	1100*700*1450	1100*750*1500	1100*750*1500	1100*750*1600
Output(Bales/hr)	4-7	4-7	4-6	4-6	4-6
Power(KW/HP)	5.5/7.5	7.5/10	11/15	15/20	22/30
Machine Size(L*W*H)mm	1800*1100*3150	1800*1100*3250	1800*1250*3400	1800*1250*3500	1900*1400*3700
Machine Weight(KG)	1800	2200	2600	3200	4500

Raw materials and finished products
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our Company
After Sales Service
Our Services
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can also meet the special voltage demand.
5.The engineer is available to service machinery oversea.
FAQ

Q1:How can I pay my order ? -----We can accept payment through Payment terms: T/T; L/C; Western Union; Money Gram.

Q2:What's the certification of your baling machine? ------CE Certification.

Q3: How to pack the products? ------We will use standard export package.

Q4:How to install after the equipment arriving destination? ------We will provide detailed illustrations for you.
