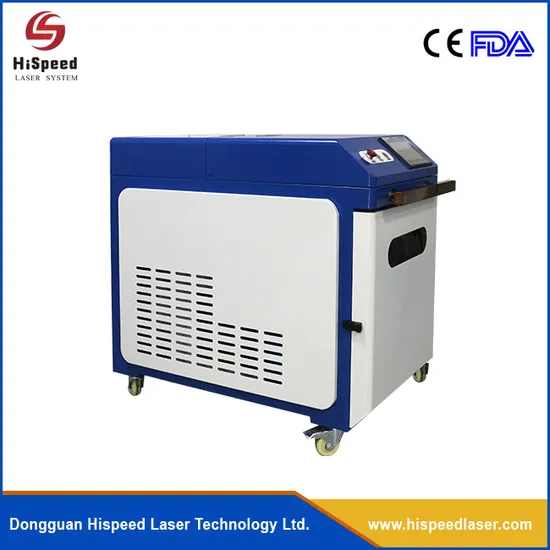

1500W Cw Fiber Laser Claning Machine Laser Cleaning Equipment for Cultural Relic Cleaning

Product Description

1500W CW Fiber Laser Claning Machine Laser Cleaning Equipment for Cultural Relic Cleaning Laser derusting machine is a new generation of surface cleaning high-tech products. It is very easy to install and operate. No chemical reagents, no media, no dust and no water cleaning, auto focus, suitable for crank surface cleaning, high surface cleanliness and other advantages.
Laser cleaning machine can remove surface resin, oil, dirt, dirt, rust, coating, coating, paint, etc. The laser descaling machine is equipped with a portable laser gun.
>> Machine Parameters <<

Operating Environment
Content	Parameter
Supply voltage	single-phase 220V/110V±10%, 50/60Hz AC
Whole machine power consumption	2500W (including chiller)
Place the environment	flat, no vibration, no impact
Working temperature	0ºC~40ºC
Working environment humidity	≤80%
Optical Parameters
Content	Parameter
Wavelength	1064nm
Average laser power	≥1000W / 1500W
Power adjustment range (%)	10-100 (gradient adjustable)
Repetition frequency (KHz)	20-50 (gradually adjustable)
Cleaning efficiency (m2/h)	5
Focal length (mm)	F160,F254 replaceable (with double red light pointer for focusing)
Cooling method	water cooling
Mechanical Parameters
Content	Parameter
Machine Size	90×58×100cm
Packing Measurement	116x66x124cm (0.95CBM) wooden case
Net Weight	230kgs
Gross Weight	270Kgs(with wooden case)
Fiber length	3 meters(5-10 meters can be customized)
Washing head weight	2.5Kg
Scan width	10-100mm
Move method	Hand held

>> Application & Sample <<
1. Removal of surface coating on metal or workpiece;
2. Quickly remove rust, oxide scale and dry paint;
3. Remove resin, grease, residual glue, dust, dirt, and production residues;
4. Coarse metal surface treatment;
5. Dry paint before welding or bonding, remove rust, oil stains, residual glue, and residual glue after welding;
6. Mold cleaning, such as tire molds, electronic molds, and food molds;
7. Dirty oil removal after the production and processing of precision parts;
8. Nuclear power components are quickly cleaned during maintenance
9. Oxidation treatment and rust removal during the production or maintenance of aerospace weapons and ships
10. Cultural relic cleaning, outside the building
>> Company Profile <<
>> Certifications <<
Why Hispeed Laser?

1.Factory

(1)We are Factory to make laser machines with years of experience.

(2)We are a reliable and experienced supplier. Our machine quality are assurable.

(3)CE and FDA certificate .

2.Warranty & After-Sale Service

(1) All the machines will be fully tested before shipment and free training for operator.

(2) The whole machine guarantee for 2 Years(some models)

(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.

(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.

3.Easy to use and safety

(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.

(2)limit switch for safe processing.Emergency stop-turn off machine immediately
After Service Policy
Training & Technical Support
1.Machine manual and Operation video will be provided with machine.
2.Software manual will be provided in softcopy.
3.Initial parameters in the software will be setup so the machine is "ready to use".
4.Online technical support requests will be reponsed within 1 hours during working time,we will guide you by email ,telephone or video chat.
5.Actually this laser marking machine is quite simple on operation,most of our users can start to use the machine and learn well by themselves in short time.
6.Engineer onsite technical support is available,visa ,air tickets,accommodation and local transportation fee will be on client's side.(Appointment needed )

Other Products

Packaging & Shipping

FAQ
Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable. Q2: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof. Q3: How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours. Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us. Q5: Can you give a discount? A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more. Q6: How you can keep your quality. A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning. Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from Hispeed Laser! Your every peny is deserve. >>>>>>Contact Us<<<<<< Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
Please advise us following inforamtion to recommend you most suitable machine:
1.What's kind of material do you want to mark? metal parts or non metal material?
2.What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand
