High-Efficiency Interlocking Brick Machine - Full Automatic PLC Control

Product Description

Block Machine Q(F)T6 -15
Product Description
1. Versatile Raw Materials: Elevate your construction endeavors with the power of our High-Efficiency Interlocking Brick Machine. Utilize a rich palette of materials including crushed stone, sand, cement, dust, coal, fly ash, cinder, slag, gangue, gravel, and perlite. Transform industrial byproducts into resilient products that endure and impress.2. Diverse Applied Products: Embark on creating architectural masterpieces with our versatile concrete blocks. From solid and hollow formats to avant-garde cellular masonry styles, unleash limitless potential. Our collection features paving stones with varied face mix options, ideal for beautifying gardens and landscapes. Elevate your designs with slabs, kerbstones, grass blocks, slope blocks, and interlocking blocks, all crafted to fulfill visionary projects.3. Extensive Applied Fields: Positioned at the forefront of innovation, our products are essential to groundbreaking advancements in construction fields. From modern buildings and road pavements to urban landscapes, squares, and gardens, our blocks lay the groundwork for future urban masterpieces.
Product Parameters
Key Technical Parameters of the Block Machine Q(F)T6-15 1) Innovative Molding Method: Experience unparalleled production efficiency with our advanced automatic charging, vibrating, and pressing system, engineered to boost productivity and output quality.2) State-of-the-Art Control Mode: Transition into the future with our fully automatic PLC control, delivering consistently smooth and efficient operations for every project.3) Optimal Pallet Size: Engineered for superior efficiency, the 880x500mm pallet size perfectly accommodates varied operational demands, enhancing production versatility.4) Efficient Molding Cycle: Enjoy adaptable efficiency with a molding cycle of 15-25 seconds, tailored to the specifications of different bricks and materials. Technical Parameters

Model	Q(F)T10	Q(F)T8	Q(F)T7	Q(F)T6	Q(F)T4
Pallet Size(mm)	1220x900	970x880	1150X750	880x680	880x500
Max. Molding Area(mm)	1100x860	920X830	1090X700	830x640	830X460
Min. Product Height(mm)	50	50	45	50	50
Max. Product Height(mm)	250	200	250	200	200
Cycle Time(s)	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25	Solid Brick 15- 18 Paver 20-25
lf the required pallet size or product heights are not listed here, we are happy to make special plans for you.

Production Table

Model	Brick Size	Production(per mould)	Production(8h one shift)
Q(F)T10	Hollow Brick/390x190x190mm	10	≈14,400PCS/202m3
	Solid Brick/240x115x53mm	62	≈100,000PCS/135m3
	Paver/200x100x60/80mm	40	≈52,000PCS/1000m2
Q(F)T8	Hollow Brick/390x190x190mm	8	≈11,500PCS/160m3
	Solid Brick/240x115x53mm	48	≈80,000PCS/117m3
	Paver/200x100x60/80mm	32	≈44,000PCS/880m2
Q(F)T7	Hollow Brick/390x190x190mm	7	≈10,080PCS/140m3
	Solid Brick/240x115x53mm	46	≈77,000PCS/147m3
	Paver/200x100x60mm	30	≈40,000PCS/800m2
Q(F)T6	Hollow Brick/390x190x190mm	6	≈8,640PCS/120m3
	Solid Brick/240x115x53mm	32	≈53,700PCS/73m3
	Paver/200x100x60/80mm	21	≈29,000PCS/577m2
Q(F)T4	Hollow Brick/390x190x190mm	4	≈5,760PCS/80m3
	Solid Brick/240x115x53mm	21	≈35,000PCS/48m3
	Paver/200x100x60/80mm	14	≈20,100PCS/400m2
Difference between different raw material and ratio and production mode If a cuber is required,the capacity may be affected

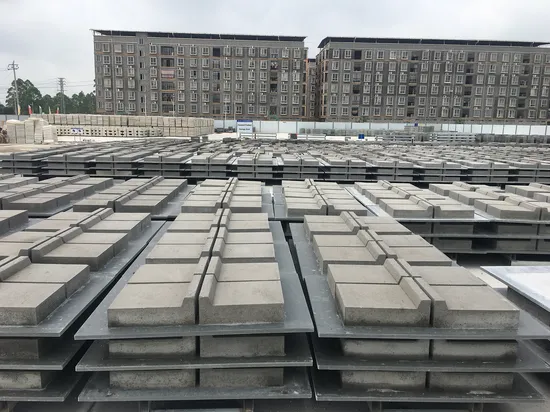

Brick Samples

Project Cases
FAQ
Q1: Do you offer warranty on your equipment?
A1: Yes, we offer a full warranty on new equipment purchasing.
Q2: which payment terms you can do?
A2: We can work on T/T term, L/C term and T/T & L/C term:
T/T term: 30%T/T as deposit, the remainder 70% should be paid before shipment.
L/C term: 100% by irrevocable L/C at sight without "soft clauses"
T/T & L/C term: 30% T/T as deposit, the balance 100% by irrevocable L/C at sight without "soft clauses"
Q3: Where is the port of loading?
A3: Normally the port of loading is XIAMEN PORT, FUJIAN, CHINA; also it can be the main port of CHINA MAINLAND
Q4: How about the installation and commissioning on new purchases?
A4: We will send our technicians to your place to guide the installation, commissioning and training your operator. You should pay for board(meals), lodging expenses and a daily allowance of USD$200 per person per day for our service engineer ; prepare the tools (crane, welding machine and electric wrench), the power and the materials for testing work; do the foundation work before our technician arrive your work site.
Q5: How much space is necessary for brick machine, wall panel machine and concrete batching plant?
A5: Normally, a brick factory needs at least 3000m2 of land, wall panel factory needs 6000m2 land, concrete batching plant requires 3000m2 of land; the land area includes raw materials stacking, equipment area, office space, vehicle access , finished products area and so on.
Q6: The durability of the block making machine?
A6: The main steel structure equipped with Q235 heavy duty steel, it's durable.
The mould frame is made of 16 Mn steel, the press board made by 1045 heavy duty steel, can press more than 100,000 times.
Equipped with Panasonic PLC and frequency transformer; SIEMENS electric element.
Equipped witorthman hh Nydraulic pump and valves.
Under regular operation, our machines can running more than 20 years, while it depend on the daily maintenance.
In Algeria, Brazil, Egypt and Saudi Arabia, S.L MACHINERY 2nd hand block making machin are popular, so after you finish the project, you can sell it as 2nd hand machine.
Q7: How long will the delivery time take?
A7: Normally it will take about 35-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 30 days.
Q8: Can I visit your factory?
A8: Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q9: What is your technological advantage of block machine?
A9: 1. Frequency Conversional Motor Automatic Vibration System ;
2. SIEMENS PLC System
3. Oil Cylinder Synchronously Demoulding
4. Noise & Aftershock Reduction System
5. More Homogeneous and Faster Mixture Discharging
6. Full servo production line with high efficiency and energy saving(Optional)
7. Remote monitoring equipment, timely provision of equipment failure warning
Q10: What is your warranty?
A10: We are responsible for all the repairs that caused by our quality problems within one year's warranty. Foreign accessories are generally delivered by DHL in orde to provide service for foreign customers promptly.
Q11: If the warranty expired, will you continuely to provide us after-sale service?
A11: The customers whose products have passsed its warranty date are entitled to enjoy our after-sales service for life.
Q12: What Raw Materials can be used for making blocks and bricks ?
A12: Cement, Sand, Fly ash, Coal residue, Coal wastes, Sand, Crushed Stone ,Construction wastes ,etc.
Q13: This machine can make different types and designs of blocks & bricks?
A13: Yes, the same machine can make different types and designs of hollow blocks , solid bricks, color pavers, curbstone etc. it only need change different moulds accordingly.
Q14: What is your company advantage?
A14: Our compnay has more than 30 years experience in the the field of block machine. We can not only offer you the machine but aslo the comprehensive service, one-station service.
Q15: How many countries have you sold to?
A15: Our machine has been exported to more than 102 countries and regions, up to 10,000 users.
