Hotsale 40cbm LPG Gas Tank 20tons LPG Storage Tank for African Market
| US$10,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW1026BA
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Purpose
Storing Liquid Propane/Ammonia/Butane Gas for Gas
Tanker Material
Q345r, 16mndr, Q370r, SA516gr70, SA517, etc.
Overall Size (Length X Width X Height)
11408*2174*2534 (mm)
Tank Diameter
Dn2400mm, etc.
Tank Thickness
Shell 14mm, Head 16mm.
Tank Volume Options
5-200cbm; Usually 50m3 60m3 80m3 100m3 120m3
Tank Capacity Options
2ton-100ton; Usually 25ton, 30ton, 40ton, 50ton
Design Pressure
1.71MPa/17.1bar, 1.77MPa/17.7bar, 1.61MPa/16.1bar
Design Temperature
-20degree~50degree
Corrosion Allowance
1 mm
Color
as Per Customer′s Request
Life Time
20 Years
Transport Package
Naked Package, Bulk Ship, Roll-Roll
Specification
40cbm 40m3 40000Liter 40000L
Trademark
CLW
Origin
Suizhou, China
HS Code
73110090
Production Capacity
500 Unit/Month
Product Description
40cbm LPG Gas Tank 20tons LPG Storage TankProduct Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc.
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP.
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
Product Specification
| Specification of 40CBM LPG Tank | ||||
| Volume of Tank | 40CBM/40,000Liters | |||
| Filling Weight | 15960kg | |||
| Tank Weight | 9020kg | |||
| Thickness of Shell (mm) | 12 mm | |||
| Thickness ofHead (mm) | 14 mm | |||
| Tank Diameter (mm) | 2150 mm | |||
| External Dimensions (mm) (length x width x height) | 11408 x 2174 x 2534mm | |||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||
| Design Pressure | 17.7Bar | |||
| Corrosion Allowance | 1 mm | |||
| Medium Density | 420~590 kg/ cbm | |||
| Color & Logo | Customised for you requests | |||
| Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||||
| List Of Safety Accessories | ||||
| Model | Item | Qty | Junction surface | |
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |
| A42F-25-100 | Safety Valve DN80 | 1 | RF | |
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | 40ºC~60ºC | |

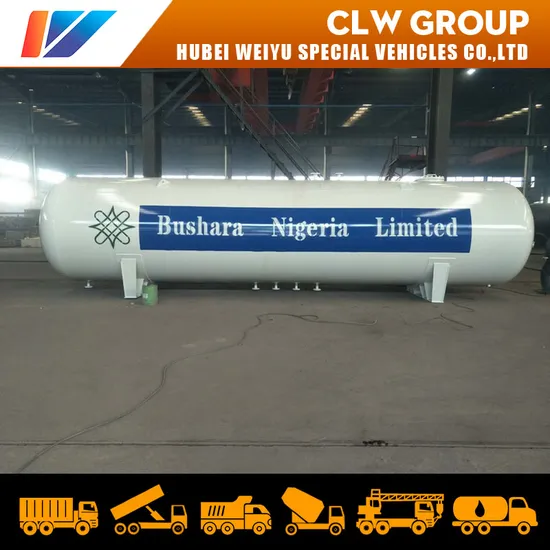

Product Show
We supply customized drawing for every storage tank
| Nozzle data | |||||
| Characters | Size | Pressure(MPa) | Connect | Junction surface | Purpose |
| a | DN50 | 25 | HG20592-WN | RF | Drain outlet |
| b | DN50 | 25 | HG20592-WN | RF | Liquid phase outlet |
| c1-2 | DN50 | 25 | HG20592-WN | RF | Gaseous phase balanced outlet |
| d | DN50 | 25 | HG20592-WN | RF | Liquid inlet |
| e | M33*2 | Screw-thread | Thermometer connection | ||
| f1-2 | DN25 | 25 | HG20592-WN | RF | Lever gauge connection |
| g | M20*1.5 | Screw-thread | Pressure Gage | ||
| h | DN100 | 25 | HG20592-WN | RF | Safety valve connection |
| i | DN50 | 25 | HG20592-WN | RF | Emptying mouth |
| j | DN450 | 25 | HG20592-WN | FM | Manhole |
Main Structure Diagram
We supply package solution for lpg station building as follows
