Welding Torch CNC Plasma Power Source Jscut-100 for CNC Cutting Machine

Product Description

Product Description

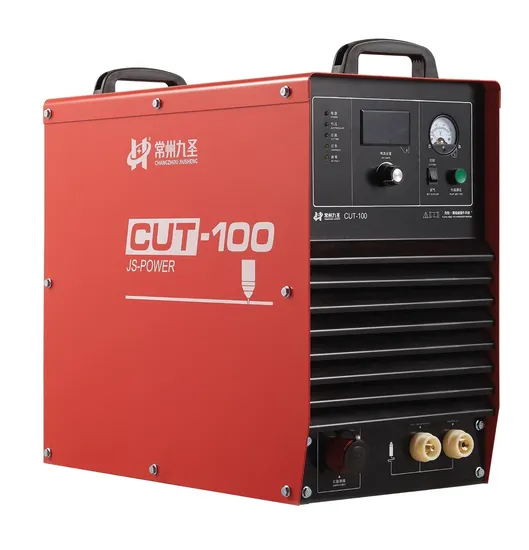

JSCUT-100
JSCUT-100 is a high quality air cooling plasma power source for CNC cutting which has high pierce capability and can achieve high verticality.
JSCUT-100 adopts the full-bridge soft-switching technology, current can be adjustable between 35A-100A steplessly, it can make cutting operation more controllable. It is heavy duty, 100% duty cycle, and it has built in multi protections for over current, over voltage, over air-pressure, over temperature etc, allows you to work 24 hours continuously.
Technical Parameters

Rated Input Voltage	V	3x380(50Hz/60Hz) +/- 10%
Rated Input Power	KVA	16
Cutting Current	A	35-100
Duty Circle	-	100A/100%
Cutting Thickness	mm	According to material.
Pierce Thickness	mm	16
Quality Cutting	mm	20
Max. Cutting	mm	38
Working gas	-	air
Gas Volume	L/min	200
Working gas Pressure	MPa	0.4
Cooling Method	-	air
Weight of Machine	kg	45
Size of machine	cm	60x31x56

Cutting Torch HC-1003
[HC1003 Torch Part Name and Code]

Cutting Method	Current (A)	Electrode	Nozzle	Protective Cap	Gas Tube	Copper Sleeve
Straight Cutting	35-60	131010	132106	133210	134010	135013
	65-100		132110

Cutting Parameters

No	Cutting Material	Cutting Thickness (mm)	Pierce Height (mm)	Cutting Height (mm)	Cutting Current (A)		Cutting Speed (mm/min)
1	Carbon Steel	3	4	2.5	60		3500
2	Carbon Steel	4	4	3	60		3000
3	Carbon Steel	5	4	3	60		1400
4	Carbon Steel	6	5	3	60		1000
5	Carbon Steel	5	4	3	90		3500
6	Carbon Steel	6	4	4	90		2800
7	Carbon Steel	8	5	4	90		2000
8	Carbon Steel	10	5	4	100		1300
9	Carbon Steel	12	6	4	100		900
10	Carbon Steel	15	6	4	100		650
11	Carbon Steel	20	Not allow to piercing, only edge cutting	4	100		500
12	Carbon Steel	25		4	100		300
13	Carbon Steel	30		4	100	200

No	Cutting material	Cutting Thickness (mm)	Pierce Height (mm)	Cutting Height (mm)	Cutting Current (A)	Cutting Speed (mm/min)
1	Stainless Steel	3	4	2.5	60	1900
2	Stainless Steel	6	4	3	60	750
3	Stainless Steel	5	4	3	90	2600
4	Stainless Steel	6	4	3	90	1800
5	Stainless Steel	10	5	4	90	1400
6	Stainless Steel	12	5	4	100	890
7	Stainless Steel	15	6	4	100	630
8	Stainless Steel	20	Not allow to piercing, only edge cutting	4	100	500
9	Stainless Steel	25		4	100	250
10	Stainless Steel	30		4	100	180
11	Aluminum	3	4	2.5	60	2500
12	Aluminum	5	4	3	60	1000
13	Aluminum	6	4	3	90	1600
14	Aluminum	8	5	4	90	1400
15	Aluminum	10	5	4	100	1300
16	Aluminum	12	5	4	100	1000
17	Aluminum	15	6	4	100	760
18	Aluminum	20	Not allow to piercing, only edge cutting	4	100	600
19	Aluminum	25		4	100	400
