Universal Vertical Gantry Milling Machine X2008

Product Description

Product Description

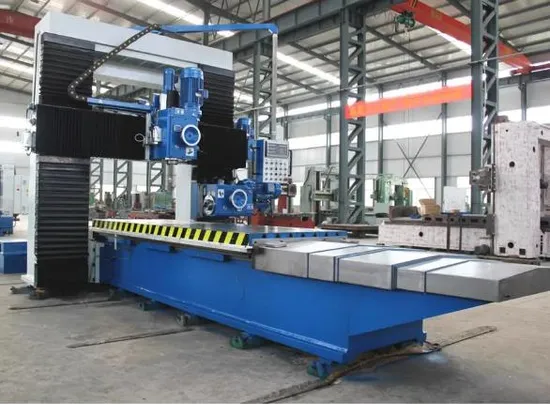

Universal vertical gantry milling machine X2008
The main performance characteristics: √ gear driven milling head with 7.5kw spindle motor, ensures powerful milling √ 6 steps spindle speed from 82rpm to 505rpm, for good torque when processing √ 35° left and right swivel head, with 350mm spindle stroke √ rectangular and V type guideway design, high rigidity & low friction, 2000kg load capacity √ scientific design of electrical circult cabinet for easy maintenance √ brief designed control panel is easy to operate
Product Parameters

Items		Unit	X2008 (2m)	X2008 (3m)
Max travel of table-X axis		mm	2000	3000
Max width allowed to pass		mm	1100
Max height allowed to pass		mm	800
Distance between columns		mm	1140
Max load		kg	2000
Table size	Length	mm	2000	3000
	Width	mm	800
Table feed speed	Feed	mm/min	0-1400 (stepless)
	Rapid	mm/min	1400
Spindle taper		-	7:24 ISO50
Spindle speed range		rpm	82-505
Spindle speed steps		-	6 steps
Max swivel angle of vertical head		-	±35°
Mill head feed speed (along beam)		mm/min	65/320/890
Mill head feed speed step		-	3 steps
Mill head sliding ram stroke		mm	350
Power of spindle motor		kw	7.5
Power of table motor		kw	4
Machine overall size	Length	mm	4000	6000
	Width	mm	3000
	Height	mm	2300

Detailed Photos
