China Manufacture CE Standard Car Spray Paint Booth for Sale

Product Description

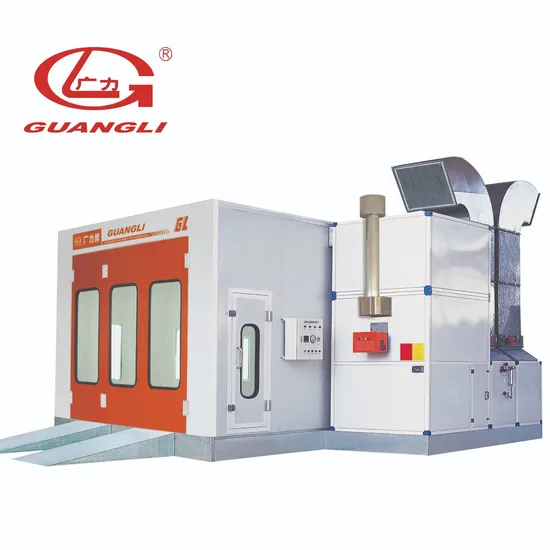

Full Downdraft Auto Paint Spray Booth
Spray paint booths represent one of the greatest improvements made toward cost-effective productivity in modern manufacturing. You maybe have some items to paint in a spray booth, like cars, trucks, boats, planes, parts and furniture, no matter what size, industry or application, we can design to fit your needs.
This car paint booth is considered as the most ideal model for the auto repair shops of our customers from home and abroad. It is usually applicable for both car repair factories and common car 4S shops in those countries or regions where the environmental protection is demand. Product Show

Product Description

Full downdraft spray booth GL serials
Size (L x W x H)	Inside Size	6900 x 3900 x 2700mm
	Outside Size	7000 x 5400 x 3500mm
Foundation and Floor	Foundation	Full metal foundation, 5 rows bearing weight steel grids
	Metal Basement	300mm height, the ventilation effect is better than traditional spray booth
	Drive-in Ramps	2 units, diamond plate construction
Wall and Door	Wallboard	Adopt high quality double construction fireproof insulation EPS panel(Rock wool as option), thickness: 50mm
	Roof Panel	Roof panels adopt galvanized steel plate bending forming
	Entrance Door	Door with metal sheet frame, 1 set, size: 3000 x 2600mm (W x H), tempering glass observation window
	Personnel Door	1 set, size: 800 x 2000mm (W x H),tempering glass observation window
Light System	Ceiling Lighting	10 units, each 4 x 18w, adopt LED energy saving light, tempering glass
	Side Lighting	8 units, each 2 x 18w, adopt LED energy saving light, tempering glass
	Brightness	≥700 LUX
Filtration System	Pre-filters	Grade G2 plate type fiber glass filter
	Ceiling Filters	Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98%
	Bottom filter	Fibreglass paint-stop filter
	Exhaust Filters	Fibreglass paint-stop filter and active carbon filter
Ventilation System	Inlet Fan	Adopt big impeller centrifugal fan 1 x 7.5KW , Three-phase, 380V, 50HZ
	Outlet Fan	Adopt big impeller centrifugal fan 1 x 5.5KW , Three-phase, 380V, 50HZ
	Total Fan Capacity	24,000m³/h
	Air Flow Speed in Cabin	0.20-0.30m/s in loaded booth
	Painting and Baking Exchange System	Solenoid valve+ pressure adjustment control cylinder driven damper exchange
	Air flow adjust	---
	Manometer	---
	Duct	Straight pipe: 5 meters, bending pipe: 2 units,soft connection: 1 unit, flange connection
	Flue	Galvanized pipe: 5 meters, bending pipe: 2 units
Heating System	Heating Exchanger	Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
	Burner Model	Adopt 1 set RIELLO diesel burner G20, each heating capacity 180.000kcal/h (gas burner or infrared light heater as option)
	Heating Time	5-7 minutes (from 20 to 60ºС) under baking status, max baking temperature is 80°C
Control Box	Control System	Standard control system
	Function	Painting, warm painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, baking delay stop protection, temperature limiter , error alarm
	Option voltage Three-phase 208/220/240/380/400/415/440/480V, 50/60Hz

Product packages
To keep the products safe and to remain the good image of the spray booth, Guangli company has standard fixed packages, to avoid getting damaged during international delivery. We use iron frame and carton boxes to package and fix before loading, as you can see in the pictures. This way can perfectly protect our paint booths when shipping.

Real Case
Guangzhou Guangli is professional auto maintenance equipment manufacturer since 1994. And with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service. Our product has been shipped to worldwide(Europe, East Europe, North&South Africa, Africa, Australia, Middle East, Asia as well as different province in China).
Company Profile
GZ GUANGLI EFE CO.,LTD is professional spray booths and man lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005, which covers 58000M2of grounding area and 36000M2of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of paint booths ranks top in this field over years.
Guangli brand spray booth and personnel lift have been approved and authorized by the following car manufacturers in China:Guandzhou Honda, Dongfong Honda, FWA Toyota, Guangzhou Toyota, Dongfon Puigeu , BMW South China, Chery Auto, Dongnan Auto, Foton Motor, Hafei Auto.

Product Certificates
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.
Equipment We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
Exhibitions
FAQ 1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department. So you can get best price from us.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material sources,our products are excellent in performance and
craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can
provide different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays.
Why Choose Us 1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.h
6.Good pre-sales and after-sales service
