Quartz Roller Sand Washer River Sand Washing Machine Aggregate Washing Plant for Sale Sand Washer Gold Washing Machine

Product Description

Product Introduction

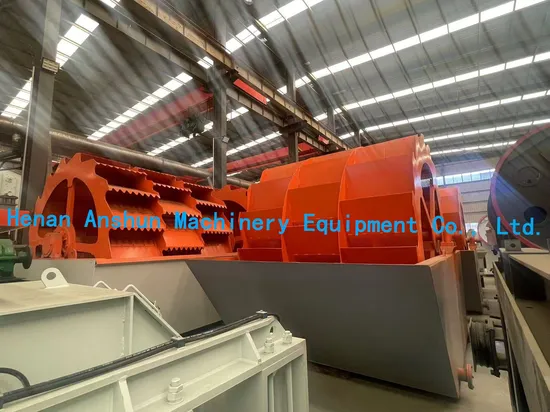

The XSD series sand washing machine adopts advanced domestic and foreign technology and is developed and produced based on the actual situation of the domestic sand and gravel industry. It is an efficient wheel bucket sand-washing equipment used with the sand-making machine. It has the characteristics of high cleanliness, reasonable structure, large processing capacity, low-efficiency consumption, low sand and gravel loss, and low failure rate. It is the best choice for upgrading domestic sand-washing equipment.

Specifications and Performance Parameters

Model	XSD2816	XSD3021	XSD3024	XSD3624
Impeller Specification(Outside Diameter Width)	φ2800×1600	φ3000×2100	φ3000×2400	φ3000×2400
Impeller Speed(mm)	1.177-2.47	1.62-2.47	1.62-2.47	1.179-2.47
Max Feed Lump Size(mm)	10	10	10	10
Capacity(t/h)	30~60	80~130	90~160	90~160
Power(kw)	11	15	15	18.5
Decelerator Model	ZQ60-50-I-z	ZQ400+ZQ250	ZQ500+ZQ250	ZQ650+ZQ400
Overall Dimension(L×WxH)(mm)	3540×3000×2880	3830×3480×3050	3830×3800×305	4460×4350×3658

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry. Packaging & Shipping
Certifications
FAQ
Support: We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience. After-sales service support : After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands. We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc. Technological support : ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
