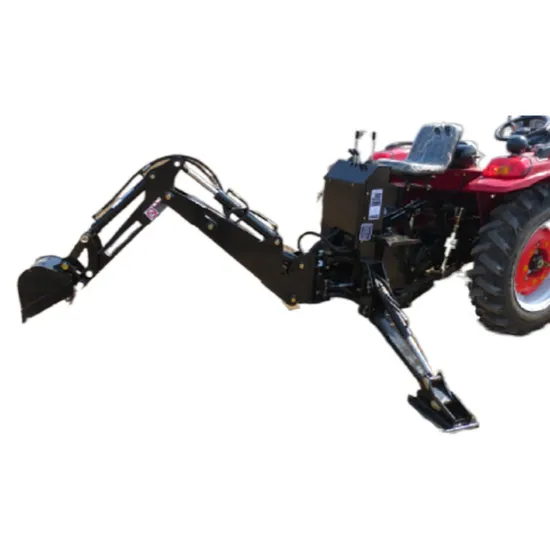

Excavator Tractor Backhoe Loader Max Digging Depth 1950 mm
| US$2,200.00-2,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LW-7
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Pto
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Black
Warranty
1 Year
Tractor Power Supply
30HP to 50HP
3-Point Linkage
Cat-1
Digging Depth(Two Foot Flat Bottom)
1950mm
Reach From Center Line of Swing Pivot
2600mm
Loading Height
1840mm
Loading Reach
1180mm
Undercut
830mm
Bucket Rotation
180 Degree
Swing Arc
180 Degree
Bucket Volume
0.036cbm
Transport Package
Steel Frame or Plywood Case
Specification
LW series
Origin
China
HS Code
8430699000
Production Capacity
100000sets/Year
Product Description
Product DescriptionKinds Of Backhoes For Tractor Farming Work,which can match different tractors, such as 25hp/30hp/35hp/40hp/50hp/60hp/70hp/80hp/90hp/100hp/120hp/130hp/150hp.etc.
Detailed Photos
Product Parameters
Tractor backhoe specifications:
| Model: | LW-6 | LW-7 | LW-8 | LW-9 |
| Tractor power required: | 20-30hp | 35-50hp | 45-70hp | 60-90hp |
| 3-point Linkage: | Cat-1 | Cat-1 | Cat-1&2 | Cat-1&2 |
| Digging Depth(two foot flat bottom) | 1750mm | 1950mm | 2250mm | 2550mm |
| Reach from center line of Swing pivot: | 2600mm | 2900mm | 3200mm | 3600mm |
| Loading Height(bucket at 60°) : | 1720mm | 1840mm | 1930mm | 2210mm |
| Transport Height(maximum): | 1840mm | 2060mm | 2130mm | 2480mm |
| Extend Height: | 2870mm | 3110mm | 3240mm | 3590mm |
| Loading Reach(bucket at 60°): | 950mm | 1180mm | 1140mm | 1360mm |
| Transport Overhang: | 1080mm | 1110mm | 1220mm | 1270mm |
| Undercut: | 730mm | 830mm | 470mm | 520mm |
| Bucket Rotation: | 180° | 180° | 180° | 180° |
| Stabilizer Spread(up position): | 1310mm | 1310mm | 1310mm | 1310mm |
| Stabilizer Spread(down position): | 2100mm | 2100mm | 2340mm | 2340mm |
| Swing Arc: | 180° | 180° | 180° | 180° |
| Bucket width: | 300mm | 400mm | 450mm | 500mm |
| Bucket volume: | 0.036cbm | 0.045cbm | 0.052cbm | 0.063cbm |
Workshop Show
Packaging & Shipping
FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.
