Brightsail Zero Gravity Double Shaft Mixer Dry Chemical Protein Powder Detergent Powder Mixing Machine

Product Description

Product Description Brightsail zero gravity double shaft mixer dry chemical protein powder detergent powder mixing machine

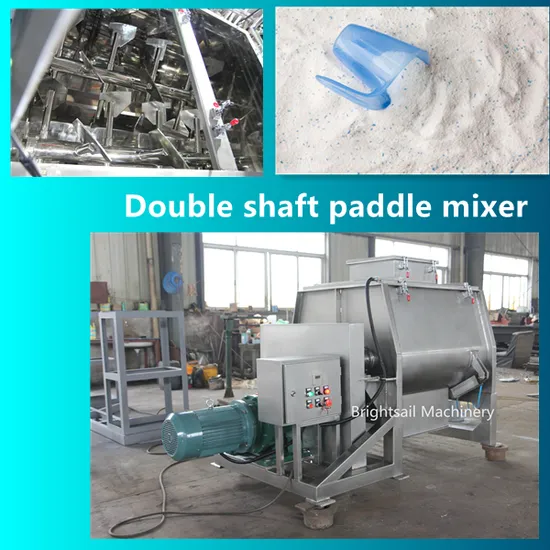

Working pinciple of horizontal paddle mixer double shaft powder mixer machine
Driven by the directly-connected decelerator, the chains drive the dual-axis rotor to move reversely at a certain speed and, during the movement, the paddle on the axis makes the material go ahead on the one hand and,on the other hand, throws it along with the radial direction to the oblique-front space.
The materials on the two sides move in the reversed areas of their own to go to and fro to get direction and are mutually dissolved into the penetrated and mixed so that a fluidized weightless area and rotating vortex is formed in the central part and continually moves along with the axial and radial directions so as to form a full-respect combined cycle to quickly get the uniform mixing effect.
This mixer is very suitable for mixing powder and particles in pharmaceutical, food, chemical, pigment and other industries.
Optional Features:
· Carbon Steel, Stainless Steel 304, Stainless Steel 316L
· Sanitary type construction Flap valve, bomb-bay door
· Horsepower to suit higher density materials
· Explosion-proof motors
· Controls such as variable frequency drives, motor starters and operator stations are available
· Spray nozzles for liquid introduction
· High Speed chopper
Technical data:

Model	Work volume	Speed (rpm)	Motor power(KW)	Overall size (L*W*H) (mm)	Weight (kg)	Output size (mm)
BSL-100	60L	2*57	3	1320(L)*700(W)*700(H)	320	2*200*50
BSL-300	180L	2*57	4	1242(L)*1278(W)*1025(H)	750	2*250*60
BSL-500	300L	2*51	5.5-7.5	1412(L)*1410(W)*1230(H)	1000	2*300*80
BSL-1000	600L	2*43	11-15	1875(L)*1610(W)*1350(H)	1550	2*350*120
BSL-2000	1200L	2*43	18.5-22	2312(L)*2160(W)*1775(H)	2500	2*350*120
BSL-3000	1800L	2*36	22-30	2408(L)*2400(W)*1955(H)	2900	2*350*120
BSL-4000	2400L	2*36	30-37	2822(L)*2546(W)*2015(H)	3600	2*360*140
BSL-6000	3600L	2*29	37-45	3075(L)*2980(W)*2235(H)	5600	2*700*140
BSL-8000	4800L	2*29	45-55	3278(L)*3426(W)*2425(H)	7100	2*700*140
BSL-10000	6000L	2*29	55-75	3538(L)*3645(W)*2615(H)	8000	2*800*140

Outline Drawing:
Product Detailes:
Main Features:
1. good mixing homogenity
2. shortest mixing time
3. high mixing efficiency
4. double drive unit

Packaging & Shipping Export standard package. Wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film.
Then, fix them in container with steel to avoid any shaking or moving during the shipping.

Company Profile
Jiangyin Brightsail Machinery Co.,Ltd, Brightsail Industries Group Co.,Ltd. (the trade dept) and Jiangyin Hengsheng Steel Structure
Co.Ltd which is established in 2002.
With our own factory, more than 20 years' experience, 70+ workers, 6 professional engineers, more than 10 years' experienced technicians, advanced equipment, CE, ISO9001 and material certificates, 1 hour reach Shanghai port; this is how we ensure superior quality, competitive offers and high efficiency for global valued customers.
We provide professional powder processing overall solution, grinder, mixer,packing machine, sifting machine, conveyor machine,
welding service, welding machine...etc.
We have sold our products to more than 80 countries around the world for now.
Our products are well received by customers at home and abroad.

After Sales Service
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install and use the machine;
* One year warranty;
* Video support;
* Engineer is available to go to user's factory to help install and train.
Customer Reviews:
FAQ:To send you a detailed quotation of a suitable mixer machine, could you tell me:
1)What materials do you need to mix?
2)What capacity do you want? Such as, 10kg/batch, 100kg/batch, 500kg/batch...etc.
3)What's the bulk density of your material? Such as, 0.5g/mL, 1g/mL, 1.5g/mL...etc.
