Electric Gas Heating Steam Jacketed Kettle Tilting Vacuum Double Jacket Kettle with Agitator Mixer / Jacketed Cooking Kettle Emulisifer Mixer

Product Description

FOCUS ON FOOD,COSMETIC,CHEMICAL,PHARMACEUTICAL,PESTICIDE PACKAGING MACHINERY RESEARCH AND DEVELOPMENT,DESIGN,MANUFACTURE IN ONE OF THE MOODERN TEAM
Mixing machine:Characteristic and parameter :
It is an indispensable device for daily chemical industry. such as the production of medicine, pesticides, food, liquid soap, commodity, cosmetics, chemical shampoo, bath gel and other mucus inter-mixed, dissolved, mixing stirring, it is ideal for daily chemical industry equipment .
The blending system adopts single-direction or double- direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirements.
Materials can be heated or cooled according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer requirements.
Various forms of blending vanes are suitable for production of different types of products.
Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.
Bottom installation type dispersing head and XINJI pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.
Features
Material SUS316 material to make contact with some of the products comply with GMP requirements.
High-speed disperser (homogenizer) strongly mixed decentralized thick, solid, liquid, The production of the material in the liquid detergent can quickly dissolve AES, AESA, LSA and other insoluble Materials, save energy shorten the production cycle.
discharge gear pump cycle device, can accelerate quickly out of shape and material.
scraped wall mixing, ready to cater to the shape of stirred tank off, sweep the pot wall sticky material.
pot and the pipe surface mirror polishing.
(Note: According to the characteristics of your production process requirements, the design of different washing liquid Polyester production line. )
thchnical parameter

Specification	Volume (L)	Mixing Power (KW)	Mixing speed(R/MIN))	Homogeneous power(KW)	Homogeneous speed(R/MIN)	Type of heating
200 L	200	1.5	10-60	3	2890	Steam or electric
300 L	300	1.5-2.2	10-60	3	2890
500 L	500	2.2	10-60	4	2890
1000 L	1000	2.2-4	10-60	7.5	2890
1500 L	1500	4-5.5	10-60	11	2890
2000 L	2000	5.5	10-60	11	2890
3000 L	3000	7.5	10-60	15	2890
5000 L	5000	11	10-60	22	2890

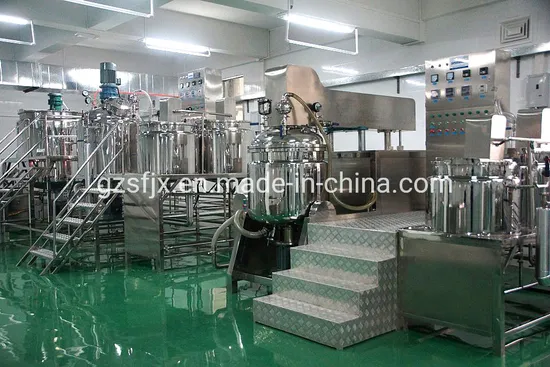

Detailed Images:
Certificate
PACKING AND SHIPPING
SERVICE
Pre Sales Service After Sales Service
* Inquiry and consulting support. *We will adjust the machine to fit for your product before delivery.
*Sample testing support. *We provide useful instructions of machine.
*24 hours on line anwser your confusion. *Training how to instal the machine,training how to use the machine.
*Welcome to view our factory *Free parts,lifelong maintenance.
*Take video as clent's
COMPANY INFORMATION
Guangzhou Shaofeng Mechanical Device Co., Ltd. is a strong technical force of professional design and manufacture of packaging machinery manufacturers,Founded in 2005,14 years production line experience .With many years of professional experience in mechanical manufacturing,the development of automated packing line,set into the bottle,filling and capping,labeling and sealing,printing,unpacking,packing and sealing as one.The entire packaging process is environmentally friendly,accurate,secure,the packaging line has reached the leading domestic level.
Exhibition
Every time we sell a machine, we will donate a gift package to hope children
FAQ
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 10 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could comfirm the details through emails or telephone.
4. Why your machine similar with other supplier?
We are manufacturer and had been in this industry for more than 10 years. We design machines by ourselves with advanced technology and import high quality material. Appearance just a part of machine, Service and quality is more important than it.
5. What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line
1. Cream, paste Production line
2. Liquid production line
3. Perfume production line
4. Lipstick production line
5. Aerosol production line
6. Foundation production line
7. Toothpaste production line
8. Toilet soap production line
....
