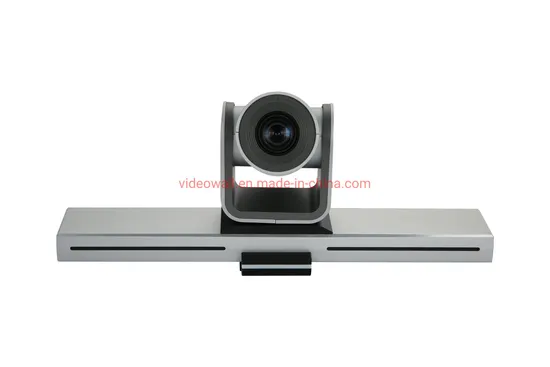

Full HD SONY 1/2.9" CMOS Sensor 3x optical zoom USB2.0 video camera

Product Description

Full HD SONY 1/2.9" CMOS sensor 3x optical zoom USB2.0 video camera Product Description H3M /3HA camera is an innovative video conferencing camera for smart Screen, with a brand new appearance design, ideal for small to medium businesses who seek an easy-to-use yet potent video conferencing solution. By supporting Full HD video resolutions and with 3x /10x optical zoom lens, H3M /3HA camera turns any video conference into a powerful, clear, enhancing experience.

Features:

SONY 1/2.9" CMOS Sensor,
3x and 10x optical zooms optional
USB2.0 interface,
output 1080p@30fps Full HD image
Field of view:84 degree and 54 degrees optional
1920x1080pixels progressive @30fps
3x or 10x optical zoom lens
HOV84/54 degree
1/2.9"HD color CMOS Sensor
Pan ± 75 degree Pan movement
Tilt +30 degree, - 30 degree
64 preset positions
4 cruise lines
No need Power adaptor

Detailed Photos
Full Hd video conference camera equipped with SONY 1/2.9" CMOS Sensor,
3x and 10x optical zooms optional,
USB2.0 interface,output 1080p@30fps Full hd image,
Brand new appearance design,
Power supply ,Image output
PTZ Movement control all through the USB cable
easy installation that perfectly suit for smart screen Smoothly Rotate: H3M Support Pan,Tilt,and Zoom movement.
The Pan Movement angle can reach to 150 degree. And the Tilt movement angle can reach to 30degree(up),30 degree(dowm), Through this, people can see everywhere clearly Compatible with Most Cloud Conferencing software
compatible with various telecommunication platforms including WebEx, Lync, Skype for Business, BlueJeans, Zoom, and Jabber for easy integration into your existing videoconferencing infrastructure.
Product Parameters

Model number:		DSY-H3M	DSY-3HA
		3X	10X
Image Sensor	Sensor	1/2.9" SONY CMOS
	Effective pixel	2.1 Megapixel
	Minimum Scene illumination	0.1Lux at F1.6
	White Balance	MANUAL/AUTO/ATW/INDOOR/OUTDOOR
	Gain Control	AUTO
	Back-light compensation	Support
	S/N Ratio	>50db
	IRIS	F1.7-F3.0	F1.6-F2.5
Lens	Focus	f=3.3mm-10mm	f=4.7-47mm
	Zoom	3x Optical Zoom	10x Optical Zoom
	Hov	84 degree	54 degree
Video Output		USB 2.0 Type B
Video format		MJPEG: 1080P30/25,720P30/25, 640x480, 640x360
Control Interface		USB
PTZ Control Protocol		VISCA,PELCO-D,UVC
Baud Rate		9600/38400bps
Patrol tours		4
Preset		64
OSD Menu		LENS OSD/DOME OSD
Speed Matching Function		Support
Image Auto Flip		Support flip/mirror
Pan Speed		0-40 degrees/s
Tilt Speed		0-40 degrees/s
Pan Rotation Angle		0-150 degree
Tilt Rotation Angle		+ 30, - 30 degree
Auto Pan Scan		Support
Remoter Control		IR Wireless remote control P/T/Z
Power		USB 2.0 Power supply
Operation Temperature		0ºC~50ºC
Environmental humidity		0-95%RH(non-condensaion)
Length X width X high		L 350mm x W 112mm x H139mm
Weight		785g

Certifications
Our Advantages 1. Quality products: Our team will do a total of 5 quality inspections for in-plant purchase quality inspection, raw material warehousing quality inspection, pre-production, in-production, and shipment quality inspections to ensure that each product is of good quality.
2. Quick and efficient response: All your queries will be answered within 12hours.
3. Experienced engineers and sales team with large size display industry manufacturing experience.
4. ISO 9001, CE, ROHS, FCC Certificated products: interactive smartboard, touch screen kiosk and seamless bezel video wall.
5. Original LCD screen factory, reasonable price, high quality, and good after-sale tech support

6. Short delivery time, flexible payment way
7. Good after-sales support: When the product fails, you can contact our sales staff at any time. We will have a solution for you within 12hours. And provide free parts if it's within warranty or cheap replacement parts for customers.
After Sales Service We provide 2 years warranty for the video camera. Any quality problem will be replied to you within 24hours as soon as our salesperson receive your feedback.
