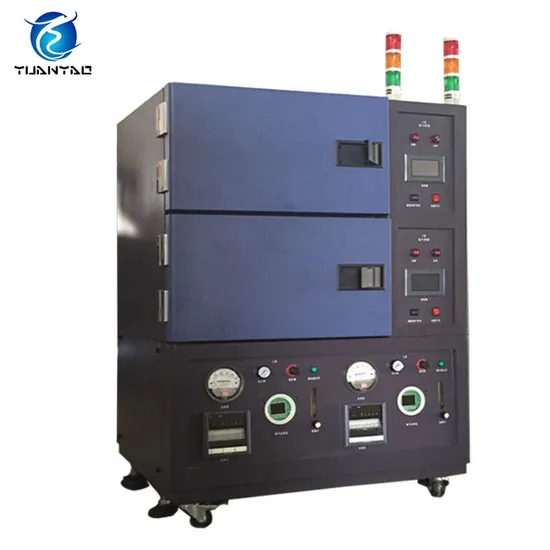

200 Degree Electric High Temperature Industrial Nitrogen Oven
| US$1,500.00-7,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YNO-072
Certification
CE
Structure
Stand Type
Material
Stainless Steel
Operational Method
Continuous
Type
Drying Oven
Volume
72 Liters
Inner Size
400*450*400mm
External Size
720*1160*560mm
Temp. Range
Rt+25 Degrees~+200 Degrees
Interior Chamber Material
SUS#201 Stainless Steel Plate
Exterior Chamber Material
Cold Rolled Plate + Powder Coated
Color
Blue and Gray
Indication Resolution
0.1degree / 1 Degree
Heat up Time
30 Mins
Insulation
Fiberglass Wool
Nitrogen System
Flow Meter+Pressure Meter, Oxygen Analyser Option
Oxygen Concentration
0-2000ppm
Heating System
Stainless Steel High Speed Heater
Control System
Digital Display Controller
Power
AC 3 Phase 380V 50Hz
Transport Package
Strong Wood Carton
Specification
CE, ISO, TUV, SGS certification
Trademark
Yuanyao
Origin
China
HS Code
8514109000
Production Capacity
100 Sets/Month
Product Description
200 degree electric high temperature industrial nitrogen ovenProduct description
Nitrogen oven can provide a stable test space for pre-heating, drying, aging test. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution High Temperature Industrial Heating Oven can provide a stable testing space and environment for pre-heating, drying, changes about physics and chemistry testing. It's precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Advantage 1) Adopts microcomputer electronic data control, precise and reliable.
2) The insulation packing is mounded by silicone, highly temperature-enduring and anti-aging.
3)Heating by compulsory circulating ventilation, temperature rising fast and uniform distribution.
4) If need, we can add a glass view window for customer to observe the inner chamber.
Advanced Microprocessor PID Controls
1) Bright LED display of actual and setpoint temperatures
2) Built-in 12-hour mechanical timer along with user-adjustable safety thermostat allows for power cut-out in case of overtemperature
3) Highly responsive RTD sensor provides temperature sensitivity of ± 0.1° C or better
4) High efficiency insulation ensures uniformity ± 0.5° At 100° C
Specification
| Model | YNO-072 | YNO-270 | YNO-480 | YNO-600 | YNO-720 | YNO-1000 |
| Inner chamber size W×H×D(cm) | 40×45×40 | 60×90×50 | 80×100×50 | 100×100×60 | 100×120×60 | 100×100×100 |
| External chamber size W×H×D(cm) | 72×116×56 | 93×163×67 | 110×172×77 | 130×172×77 | 116×170×116 | 116×150×166 |
| Temperture. range | Room Temperture+25ºC~200ºC(300ºC) | |||||
| Temperture.fluctuation | ±0.3ºC | |||||
| Temperture.uniformity | ±1%ºC | |||||
| Temperture.Resolution | 0.1ºC | |||||
| Oxygen concentration | 0-2000PPM | |||||
| Heating up time | 30min | |||||
| External chamber material | Cold rolled sheet+power coating | |||||
| Internal chamber material | SUS#201 Stainless steel plate(Adopt SUS#304 stainless steel when temperature>200ºC) | |||||
| Insulation | Fiberglass wool | |||||
| Wind Circulation system | Centrifugal fan air circulation system | |||||
| Heating system | SUS#Stainless steel high-speed heater | |||||
| Controlling system | Button type digital display controller | |||||
| Nitrogen system | Flow meter + Pressure meter (oxygen analyser is optional) | |||||
| Other components | Control status indicator light, shelf(2pcs, height adjustable) | |||||
| Safe device | Phase sequence protection,over temperature protection,overload protection | |||||
| Power supply | AC 3ψ 380V 60/50Hz | |||||
| Customization service | No-standard or special requirements are all welcome | |||||
Product detail
Company profile
If you want to know more about nitrogen oven,please feel free to contact us. Welcome to inquiry ,and thank you for your reading !
